Connector
Triangular application
Cross application
Right angle application
Basic parameters
| Rated voltage： | 12~24v |
| Rated current： | <4A |
| working environment： | moisture-proof ventilation -20 ~ 60 degrees environment |
| Temperature resistance： | -40-160℃ |
LED Quick connector-8mm
LD-SE-N8BB-2
LD-SE-N8XB-2
Base parameters
| Shell: | Polycarbonate |
| Contact chip: | Environmentally hardware material,high-precision copper |
| Rated voltage： | 0-36V |
| Rated current： | 5A |
LED Quick connector-8mm
LD-SE-DJ-N8BB-2-1
LD-SE-DJ-N8XB-2-1
LD-SE-N8BB-2-1
LD-SE-N8XB-2-1
LD-TG-N8BB-2-1
LD-TG-N8XB-2-1
Base parameters
| Shell: | Polycarbonate |
| Contact chip: | Environmentally hardware material,high-precision copper |
| Rated voltage： | 0-36V |
| Rated current： | 5A |

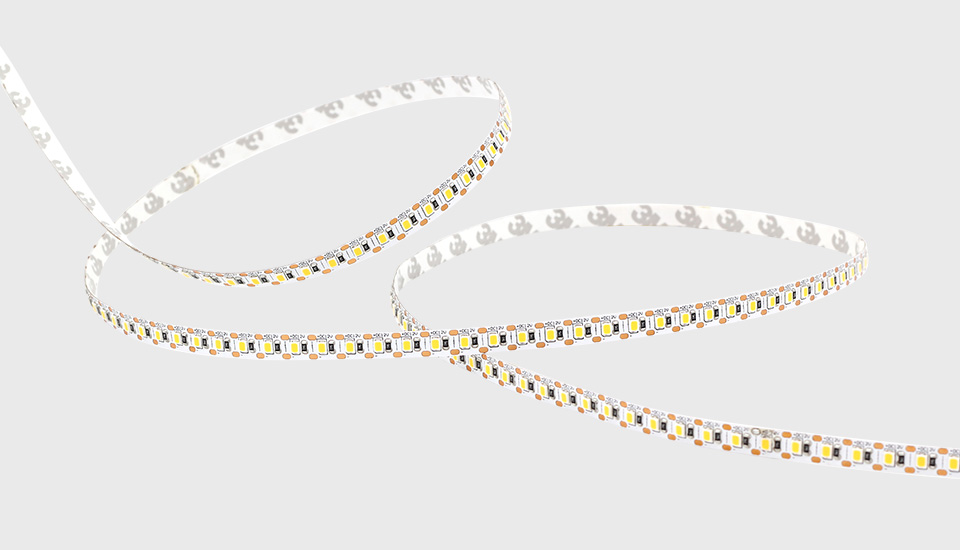

FH10W-P0-G1 28AH9x 12V120S W08L05
Description
-
Mini cut unit up to 8.33mm
-
12V / 24V voltage for option
-
Different color temperature are available.
Parameters
- Size:5004±10mm
- Cutting unit:8.3±1mm
- Power:9.6W/m
- Voltage:DC12V
- Led Qty:120LEDs/M
- PCB:8mm
- CRI:>90
- IP:IP20
| LUMENS PER METER | |||||
| Product No. | FH10W-P0-G1 28AH9x 12V120S W08L05 | ||||
| 2700K | 750lm | ||||
| 3000K | 820lm | ||||
| 4000K | 900lm | ||||
| 5000K | 860lm | ||||
| 6000K | 850lm | ||||
| Product No. | Order Code |
| FH10W-P0-G1 28AH927 12V120S W08L05 | 930-0-10-0-000400 |
| FH10W-P0-G1 28AH930 12V120S W08L05 | 930-0-10-0-000401 |
| FH10W-P0-G1 28AH940 12V120S W08L05 | 930-0-10-0-000402 |
| FH10W-P0-G1 28AH950 12V120S W08L05 | 930-0-10-0-000403 |
| FH10W-P0-G1 28AH965 12V120S W08L05 | 930-0-10-0-000404 |
| Note: ' * ' =MTO(make-to-order) | |
