Connector

Triangular application

Cross application

Right angle application
Basic parameters
Rated voltage: 12~24v
Rated current: <4A
working environment: moisture-proof ventilation -20 ~ 60 degrees environment
Temperature resistance: -40-160℃
Wire joint

LD-XC-JXD-D2

LD-XC-JXD-H2

LD-XC-JXD-T2
Base parameters
Shell: Polycarbonate
Contact conductor: high-precision pure copper
Rated voltage: 0-36V
Rated current: 9A
Flame retardant rating: accord with UL-94-V0
productDetails

Projects

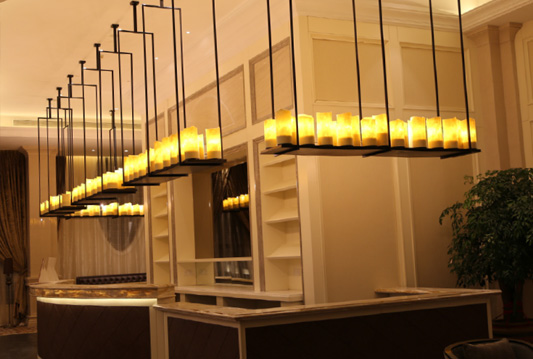

Jinjiang International Resort Hotel


The resort is a relaxing place to live in, and there is strict requirement on lights. LEDMY adopt the customized CCT strip to make different product selection and lighting design in the different environment ,like guest rooms, suites, lovers' rooms. It is helpful for creating right atmosphere, but also combining with lighting function.

productDetails

Contact

Contact Us

Tel:+ 86 (755) 2765 8410
Fax:+ 86 (755) 2765 8502

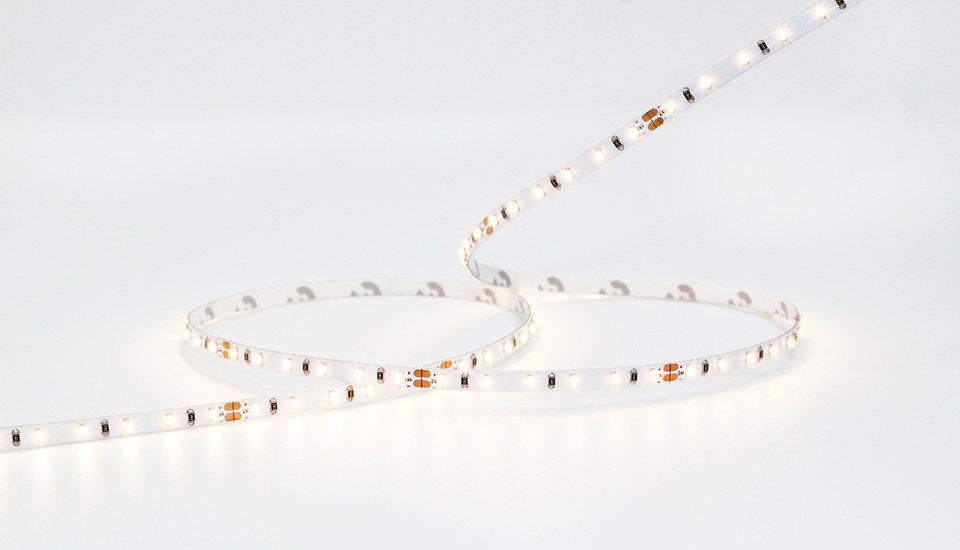

FE07W-P0-G1 21X9x 24V120S W04L05

Description

  • Wide range of illumination for more compact lighting space.
  • Higher density, with a profile and a milky white cover for a more even lighting

Parameters

  • Size:5004±10mm
  • Cutting unit:50±1mm
  • Power:7.2W/m
  • Voltage:DC24V
  • Led Qty:120LEDs/M
  • PCB:8mm
  • CRI:>90
  • IP:IP20
LUMENS PER METER
Product No. FE07W-P0-G1 21X9x 24V120S W04L05
2200K 500lm
2500K 520lm
2700K 530lm
3000K 580lm
4000K 620lm
5000K 610lm
6000K 600lm
Product No. Order Code
FE07W-P0-G1 21X927 24V120S W04L05 931-0-15-0-000003
FE07W-P0-G1 21X930 24V120S W04L05 931-0-15-0-000004
FE07W-P0-G1 21X940 24V120S W04L05 931-0-15-0-000005
FE07W-P0-G1 21X950 24V120S W04L05 931-0-15-0-000006
FE07W-P0-G1 21X960 24V120S W04L05 931-0-15-0-000007
Note: ' ' =MTO(make-to-order)
×
