Connector

Triangular application

Cross application

Right angle application
Basic parameters
Rated voltage: 12~24v
Rated current: <4A
working environment: moisture-proof ventilation -20 ~ 60 degrees environment
Temperature resistance: -40-160℃
LED Quick connector-8mm

LD-TG-N8BB-2

LD-TG-N8XB-2
Base parameters
Shell: Polycarbonate
Contact chip: Environmentally hardware material,high-precision copper
Rated voltage: 0-36V
Rated current: 5A
Wire joint

LD-XC-JXD-D2

LD-XC-JXD-H2

LD-XC-JXD-T2
Base parameters
Shell: Polycarbonate
Contact conductor: high-precision pure copper
Rated voltage: 0-36V
Rated current: 9A
Flame retardant rating: accord with UL-94-V0
productDetails

Projects

The Peninsula Hotel Shanghai


The hotel located on the historic Bund, is the only new building on the Bund for 60 years. The hotel's decoration design recreates golden days’ style and features of shanghai as "Paris in the East" in the 1920s and 1930s In order to retain the retro style of hotel, LEDMY adopt hidden strip to instead of the downlight, which not only satisfied the decorative effect, but also with the lighting functions.

productDetails

Contact

Contact Us

Tel:+ 86 (755) 2765 8410
Fax:+ 86 (755) 2765 8502

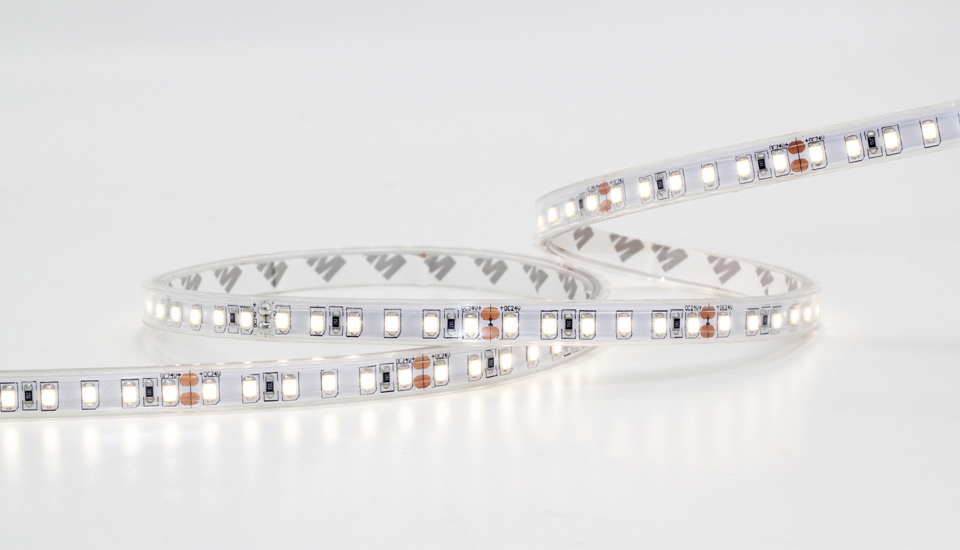

FH10W-P5-G2 28LZ9x 24V120S W08L05

Description

  • High CRI; CRI>90
  • High Efficiency, Up to 100lm/w
  • High color consistency, within 5 steps SDCM(3 steps Optional)
description

Parameters

  • Size:5010±10mm
  • Cutting unit:50±1mm
  • Power:9.6W/m
  • Voltage:DC24V
  • Led Qty:120LEDs/M
  • PCB:10mm
  • CRI:>90
  • IP:IP65
LUMENS PER METER
Product No. FH10W-P5-G2 28LZ9x 24V120S W08L05
2200K 576lm
2400K 612lm
2700K 693lm
3000K 720lm
4000K 756lm
5000K 810lm
6000K 792lm
Product No. Order Code
FH10W-P5-G2 28LZ922 24V120S W08L05* 930-5-10-0-000092
FH10W-P5-G2 28LZ924 24V120S W08L05 930-5-10-0-000093
FH10W-P5-G2 28LZ927 24V120S W08L05 930-5-10-0-000094
FH10W-P5-G2 28LZ930 24V120S W08L05 930-5-10-0-000095
FH10W-P5-G2 28LZ940 24V120S W08L05 930-5-10-0-000096
FH10W-P5-G2 28LZ950 24V120S W08L05 930-5-10-0-000097
FH10W-P5-G2 28LZ960 24V120S W08L05 930-5-10-0-000098
Note: ' ' =MTO(make-to-order)

Download

Installation Instruction

  •
  •
×
