Connector

Triangular application

Cross application

Right angle application
Basic parameters
Rated voltage: 12~24v
Rated current: <4A
working environment: moisture-proof ventilation -20 ~ 60 degrees environment
Temperature resistance: -40-160℃
LED Quick connector-10mm

LD-TG-N10BB-2

LD-TG-N10XB-2
Base parameters
Shell: Polycarbonate
Contact chip: Environmentally hardware material,high-precision copper
Rated voltage: 0-36V
Rated current: 5A
Wire joint

LD-XC-JXD-D2

LD-XC-JXD-H2

LD-XC-JXD-T2
Base parameters
Shell: Polycarbonate
Contact conductor: high-precision pure copper
Rated voltage: 0-36V
Rated current: 9A
Flame retardant rating: accord with UL-94-V0
productDetails

Projects

The Peninsula Hotel Shanghai


The hotel located on the historic Bund, is the only new building on the Bund for 60 years. The hotel's decoration design recreates golden days’ style and features of shanghai as "Paris in the East" in the 1920s and 1930s In order to retain the retro style of hotel, LEDMY adopt hidden strip to instead of the downlight, which not only satisfied the decorative effect, but also with the lighting functions.

productDetails

Contact

Contact Us

Tel:+ 86 (755) 2765 8410
Fax:+ 86 (755) 2765 8502

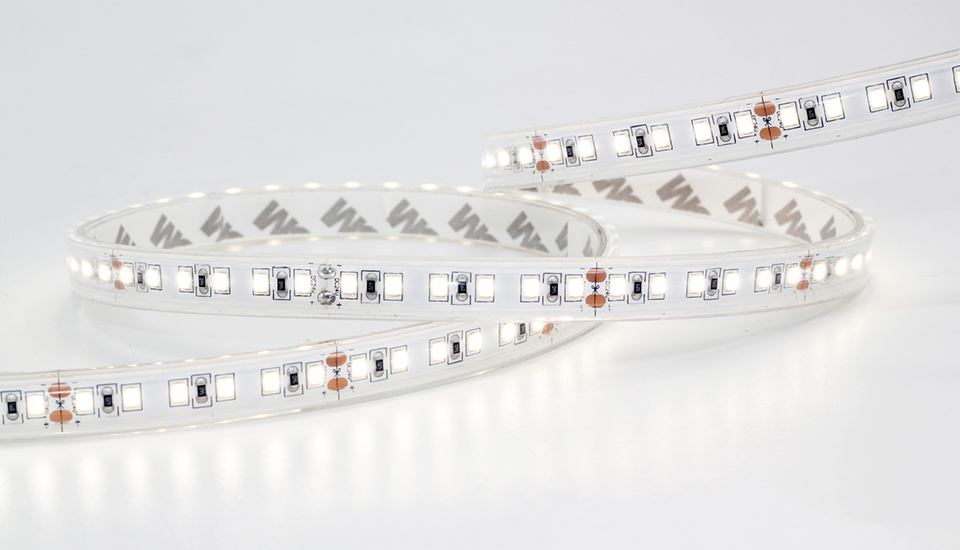

FH19W-P5-G2 28HZ9x 24V120S W10L05

Description

  • High CRI; CRI>90
  • High Efficiency, Up to 100lm/w
  • High color consistency, within 5 steps SDCM(3 steps Optional)
description

Parameters

  • Size:5010±10mm
  • Cutting unit:50±1mm
  • Power:19.2W/m
  • Voltage:DC24V
  • Led Qty:120LEDs/M
  • PCB:12mm
  • CRI:>90
  • IP:IP65
LUMENS PER METER
Product No. FH19W-P5-G2 28HZ9x 24V120S W10L05
2200K 1395lm
2400K 1557lm
2700K 1620lm
3000K 1683lm
4000K 1719lm
5000K 1773lm
6000K 1728lm
Product No. Order Code
FH19W-P5-G2 28HZ922 24V120S W10L05* 930-5-10-0-000134
FH19W-P5-G2 28HZ924 24V120S W10L05 930-5-10-0-000135
FH19W-P5-G2 28HZ927 24V120S W10L05 930-5-10-0-000136
FH19W-P5-G2 28HZ930 24V120S W10L05 930-5-10-0-000137
FH19W-P5-G2 28HZ940 24V120S W10L05 930-5-10-0-000138
FH19W-P5-G2 28HZ950 24V120S W10L05 930-5-10-0-000139
FH19W-P5-G2 28HZ960 24V120S W10L05 930-5-10-0-000140
Note: ' ' =MTO(make-to-order)

Download

Installation Instruction

  •
  •
×
