Connector
Triangular application
Cross application
Right angle application
Basic parameters
| Rated voltage： | 12~24v |
| Rated current： | <4A |
| working environment： | moisture-proof ventilation -20 ~ 60 degrees environment |
| Temperature resistance： | -40-160℃ |
Wire joint
LD-XC-JXD-D2
LD-XC-JXD-H2
LD-XC-JXD-T2
Base parameters
| Shell： | Polycarbonate |
| Contact conductor： | high-precision pure copper |
| Rated voltage： | 0-36V |
| Rated current： | 9A |
| Flame retardant rating: | accord with UL-94-V0 |
LED Quick connector-12mm
LD-SE-N12BB-2
LD-SE-N12XB-2
Base parameters
| Shell: | Polycarbonate |
| Contact chip: | Environmentally hardware material,high-precision copper |
| Rated voltage： | 0-36V |
| Rated current： | 5A |

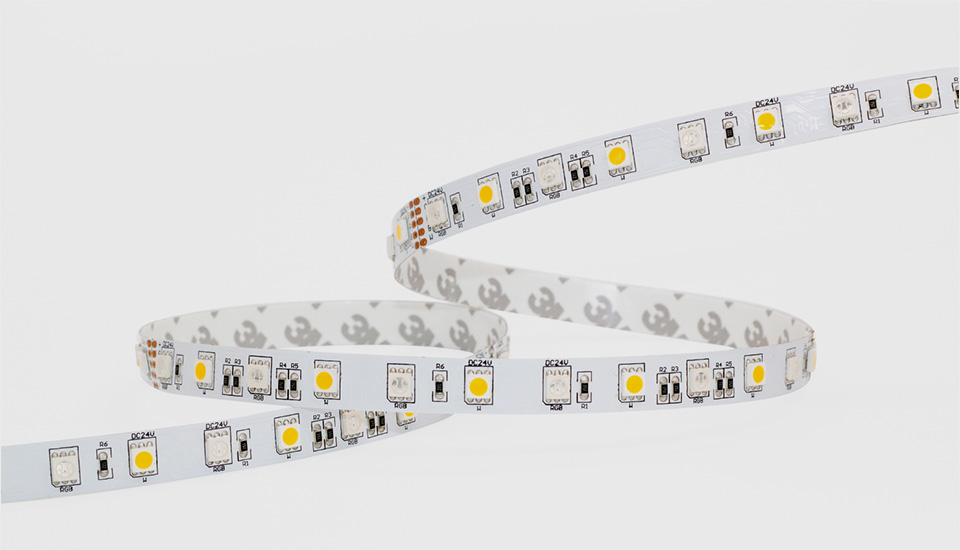

FH14C-P0-G1 50ZRGB50Z9x 24V60S W12L05
Description
- Can achieve a variety of colors including white, and improve color index and consistency for white lights.
- Integrated package solution for more uniform and consistent light mixing.
Parameters
- Size:5004±10mm
- Cutting unit:200±1mm
- Power:14.4W/m
- Voltage:DC24V
- Led Qty:60LEDs/M
- PCB:10mm
- IP:IP20
| LUMENS PER METER | |||||
| Product No. | FH14C-P0-G1 50ZRGB50Z9x 24V60S W12L05 | ||||
| 2400K |
540lm |
||||
| 2700K | 620lm | ||||
| 3000K | 630lm | ||||
| 4000K | 650lm | ||||
| 5000K | 710lm | ||||
| 6000K | 660lm | ||||
| Red | 70lm | ||||
| Green | 160lm | ||||
| Blue | 40lm | ||||
| Product No. | Order Code |
| FH14C-P0-G1 50ZRGB50Z927 24V60S W12L05 | 930-0-99-0-000010 |
| FH14C-P0-G1 50ZRGB50Z940 24V60S W12L05 | 930-0-99-0-000009 |
| Note: ' * ' =MTO(make-to-order) | |
