Connector

connector with wire
607-06-02026-035
Basic parameters
Material: Copper with PC
Bracket

Bracket
721-0507-106
Basic parameters
Material: PC
Package: Ten
Other: With screws
productDetails

Projects

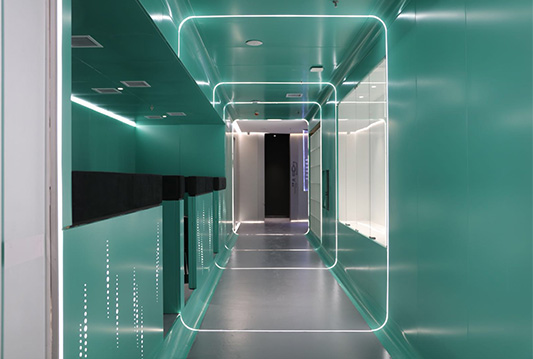

XI AN GEORGE WOODS FITNESS


1: Starting from the concept of fashion, using curvaceous design to create an outdoor fitness feeling. Let people feel the outdoor atmosphere in a comfortable space.

2: During the application of lighting equipment, different color temperatures are used to create lighting different levels and protruding area distribution.

3: From the safety point of view, the self-weight area uses 4000K nature white , which does not affect potential safety hazards during large-scale activities.

4 : Curved customized decorative lights are used in the running area in combination with the space, so that the lights and the space can be combined to use same 4000K color temperature.

5: The lighting mode of the spinning bike room adopts the bar mode. The magic lights that chase and change color from the wall are combined with the profiles to merge with the wall. Synchronize the music and let the light follow the music. Let people feel the dynamic progress of the overall space during exercise

Summary: This space is based on the original renderings combined with the human-centered concept, taking into account the natural light sense to complete this project from a safety perspective. It has been highly recognized by the social person, Party A, and the designer, and the degree of reduction is as high as 95%+.

productDetails

Contact

Contact Us

Tel:+ 86 (755) 2765 8410
Fax:+ 86 (755) 2765 8502

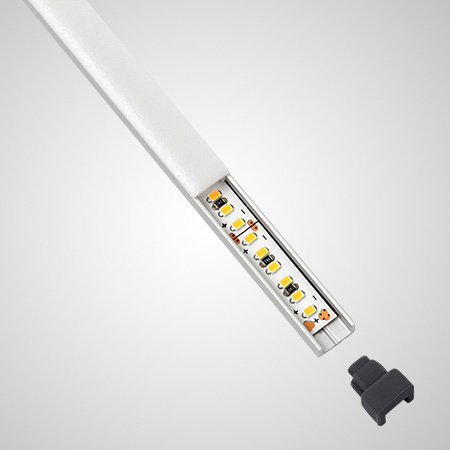

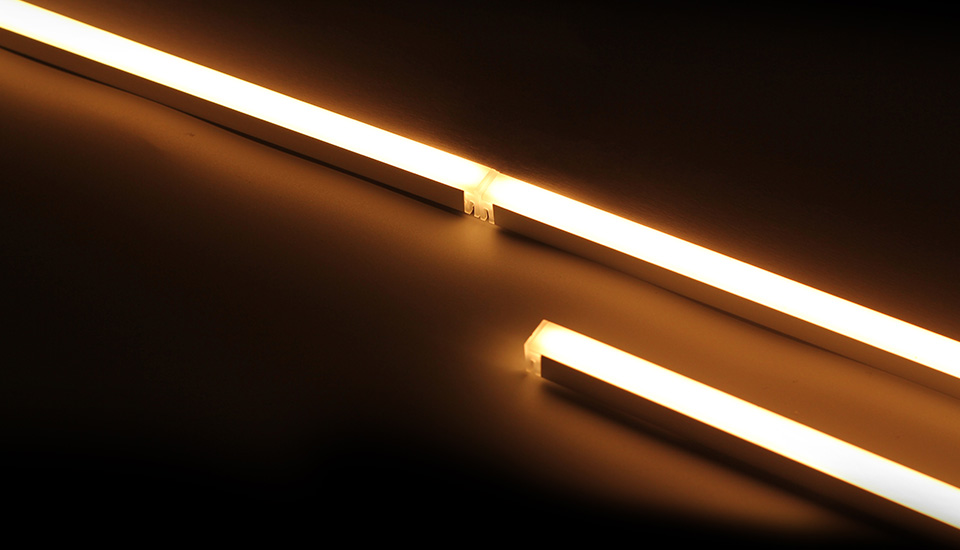

LD-X0808

Description

  • 24V DC input
  • High brightness and low power consumption;
  • LED Type: 2016 SMD;
  • Bean angle:120°;
  • LED QTY: 182 LEDS/pcs (0.6M) 273 LEDS/pcs (0.9M);
  • Working temperature: -20°C~50°C;
  • Lifespan>50000hours;
  • No gap connection with slim fast connector;
  • Magnetic installation as option.
description

Parameters

  • Input voltage:DC24V
  • CRI:>90
  • IP rate:IP20
  • Power:6W/9W
  • PCB:6mm
  • CCT:2700K/3000K/4000K/6000K
  • Lumen:330lm~603lm
LUMENS PER METER
Product No. LD-X0808-6W-9x-D
2700 330lm
3000 348lm
4000 402lm
6000 372lm
LUMENS PER METER
Product No. LD-X0808-9W-9x-D
2700 495lm
3000 522lm
4000 603lm
6000 558lm
Product No. Order No.
LD-X0808-6W-927-D 911-14-0116-003
LD-X0808-6W-930-D 911-14-0116-001
LD-X0808-6W-940-D 911-14-0117-001
LD-X0808-6W-960-D /
LD-X0808-9W-927-D 911-14-0116-004
LD-X0808-9W-930-D 911-14-0116-002
LD-X0808-9W-940-D 911-14-0117-002
LD-X0808-9W-960-D /
Note:'* ' = MTO(make-to-order)

Download

Installation Instruction

  •
  •
×
