Wire joint

LD-XC-JXD-D2

LD-XC-JXD-H2

LD-XC-JXD-T2
Base parameters
Shell: Polycarbonate
Contact conductor: high-precision pure copper
Rated voltage: 0-36V
Rated current: 9A
Flame retardant rating: accord with UL-94-V0
LED Quick connector-10mm

LD-TG-N10BB-2

LD-TG-N10XB-2
Base parameters
Shell: Polycarbonate
Contact chip: Environmentally hardware material,high-precision copper
Rated voltage: 0-36V
Rated current: 5A
Connector

Triangular application

Cross application

Right angle application
Basic parameters
Rated voltage: 12~24v
Rated current: <4A
working environment: moisture-proof ventilation -20 ~ 60 degrees environment
Temperature resistance: -40-160℃
productDetails

Projects

Dongguan International Trade Centre


Dongguan International Trade Center is an international urban complex integrating business, recreation and entertainment. How to create light that is comfortable, approachable and thought-provoking to break the stereotype of city night scene is the foremost problem to be settled by LEDMY. A large amount of linear lights is applied to the ceiling and wall space of the center to outline the building structure and highlight the wall and ceiling materials, bringing a three-dimensional visual experience of the whole building. The unique combination of LED wall washer with the veined background in the lobby reception is artistic, interest and eye-catching.

productDetails

Contact

Contact Us

Tel:+ 86 (755) 2765 8410
Fax:+ 86 (755) 2765 8502

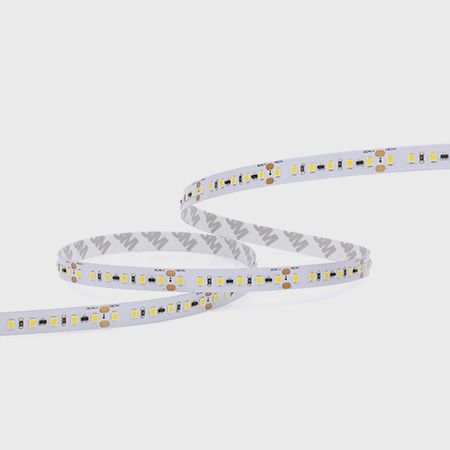

FP09W-P5-G2 28QG9x 24VT120S W10L20

Description

  • 20m long strip driven by one end power supply;
  • the same brightness from end to end.
description

Parameters

  • Size:5004±10mm
  • Cutting unit:50±1mm
  • Power:8.5W/m
  • Voltage:DC24V
  • LED type:120LEDs/M
  • PCB:10mm
  • CRI:>90
  • IP:IP20
LUMENS PER METER
Product No. FP09W-P5-G2 28QG9x 24VT120S W10L20
2700K 665lm
3000K 691lm
4000K 765lm
5000K 738lm
6000K 716lm
Product No. Order Code
FP09W-P5-G2 28QG927 24VT120S W10L20 /
FP09W-P5-G2 28QG930 24VT120S W10L20 /
FP09W-P5-G2 28QG940 24VT120S W10L20 /
FP09W-P5-G2 28QG950 24VT120S W10L20 /
FP09W-P5-G2 28QG960 24VT120S W10L20 /
Note:'*'=MTO(make-to-order)
×
