Connector
Triangular application
Cross application
Right angle application
Basic parameters
| Rated voltage： | 12~24v |
| Rated current： | <4A |
| working environment： | moisture-proof ventilation -20 ~ 60 degrees environment |
| Temperature resistance： | -40-160℃ |
LED Quick connector-10mm
LD-SE-DJ-N10BB-2-1
LD-SE-DJ-N10XB-2-1
LD-SE-N10BB-2-1
LD-SE-N10XB-2-1
LD-TG-N10BB-2-1
LD-TG-N10XB-2-1
Base parameters
| Shell: | Polycarbonate |
| Contact chip: | Environmentally hardware material,high-precision copper |
| Rated voltage： | 0-36V |
| Rated current： | 5A |
Wire joint
LD-XC-JXD-D2
LD-XC-JXD-H2
LD-XC-JXD-T2
Base parameters
| Shell： | Polycarbonate |
| Contact conductor： | high-precision pure copper |
| Rated voltage： | 0-36V |
| Rated current： | 9A |
| Flame retardant rating: | accord with UL-94-V0 |

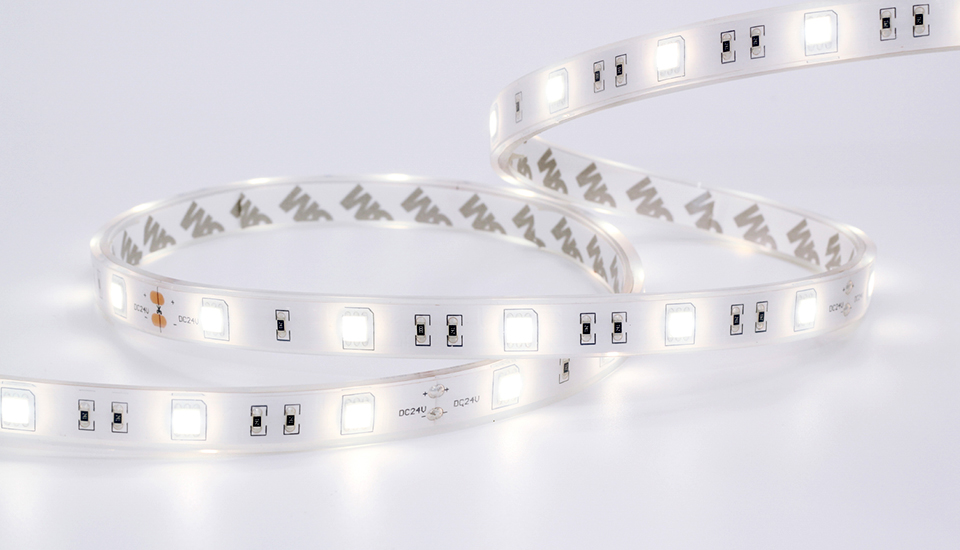

FH09W-P8-G1 50HZ9x 24V30S W10L05
Description
- High CRI; CRI>90.
- High Efficiency, Up to 100lm/w.
- High color consistency, within 5 steps SDCM(3 steps Optional).
Parameters
- Size:5018±10mm
- Cutting unit:166.7±1mm
- Power:8.5W/m
- Voltage:DC24V
- Led Qty:30LEDs/M
- PCB:12.5mm
- CRI:>90
- IP:IP68
| LUMENS PER METER | |||||
| Product No. | FH09W-P8-G1 50HZ9x 24V30S W10L05 | ||||
| 2400K | 459lm | ||||
| 2700K | 527lm | ||||
| 3000K | 536lm | ||||
| 4000K | 553lm | ||||
| 6000K | 561lm | ||||
| Product No. | Order Code |
| FH09W-P8-G1 50HZ924 24V30S W10L05 | 930-8-02-0-000005 |
| FH09W-P8-G1 50HZ927 24V30S W10L05 | 930-8-02-0-000006 |
| FH09W-P8-G1 50HZ930 24V30S W10L05 | 930-8-02-0-000007 |
| FH09W-P8-G1 50HZ940 24V30S W10L05 | 930-8-02-0-000008 |
| FH09W-P8-G1 50HZ960 24V30S W10L05 | 930-8-02-0-000010 |
| Note: ' * ' =MTO(make-to-order) | |
