Projects

XI AN GEORGE WOODS FITNESS


1: Starting from the concept of fashion, using curvaceous design to create an outdoor fitness feeling. Let people feel the outdoor atmosphere in a comfortable space.

2: During the application of lighting equipment, different color temperatures are used to create lighting different levels and protruding area distribution.

3: From the safety point of view, the self-weight area uses 4000K nature white , which does not affect potential safety hazards during large-scale activities.

4 : Curved customized decorative lights are used in the running area in combination with the space, so that the lights and the space can be combined to use same 4000K color temperature.

5: The lighting mode of the spinning bike room adopts the bar mode. The magic lights that chase and change color from the wall are combined with the profiles to merge with the wall. Synchronize the music and let the light follow the music. Let people feel the dynamic progress of the overall space during exercise

Summary: This space is based on the original renderings combined with the human-centered concept, taking into account the natural light sense to complete this project from a safety perspective. It has been highly recognized by the social person, Party A, and the designer, and the degree of reduction is as high as 95%+.

productDetails

Contact

Contact Us

Tel:+ 86 (755) 2765 8410
Fax:+ 86 (755) 2765 8502

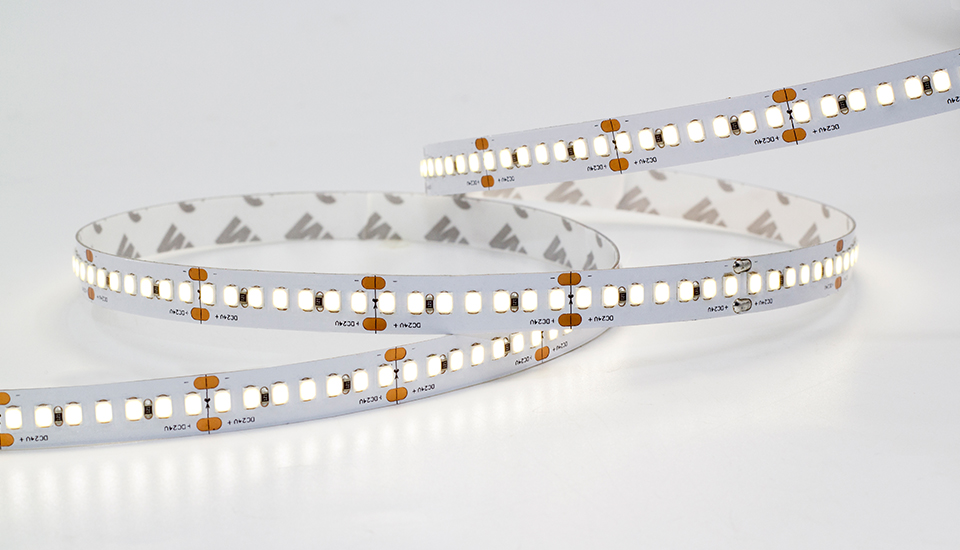

FH14W-P0-G1 28HX8x 24V210S7 W10L05

Description

  • 7 led/group design, up to 120 lm/w
  • 2200-6000K Multi-color temperature optional

Parameters

  • Size:5004±10mm
  • Cutting unit:33.3±1mm
  • Power:14.4W/m
  • Voltage:DC24V
  • Led Qty:210LEDs/M
  • PCB:10mm
  • CRI:>80
  • IP:IP20


LUMENS PER METER
Product No. FH14W-P0-G1 28HX8x 24V210S7 W10L05
2200K 1512lm
2400K 1555lm
2700K 1685lm
3000K 1742lm
4000K 1800lm
5000K 1771lm
6000K 1771lm


Download

Installation Instruction

  •
  •

Recommendation

×
