Connector
Triangular application
Cross application
Right angle application
Basic parameters
| Rated voltage： | 12~24v |
| Rated current： | <4A |
| working environment： | moisture-proof ventilation -20 ~ 60 degrees environment |
| Temperature resistance： | -40-160℃ |
LED Quick connector-10mm
LD-SE-DJ-N10BB-2
LD-SE-DJ-N10XB-2
Base parameters
| Shell: | Polycarbonate |
| Contact chip: | Environmentally hardware material,high-precision copper |
| Rated voltage： | 0-36V |
| Rated current： | 5A |
Wire joint
LD-XC-JXD-D2
LD-XC-JXD-H2
LD-XC-JXD-T2
Base parameters
| Shell： | Polycarbonate |
| Contact conductor： | high-precision pure copper |
| Rated voltage： | 0-36V |
| Rated current： | 9A |
| Flame retardant rating: | accord with UL-94-V0 |

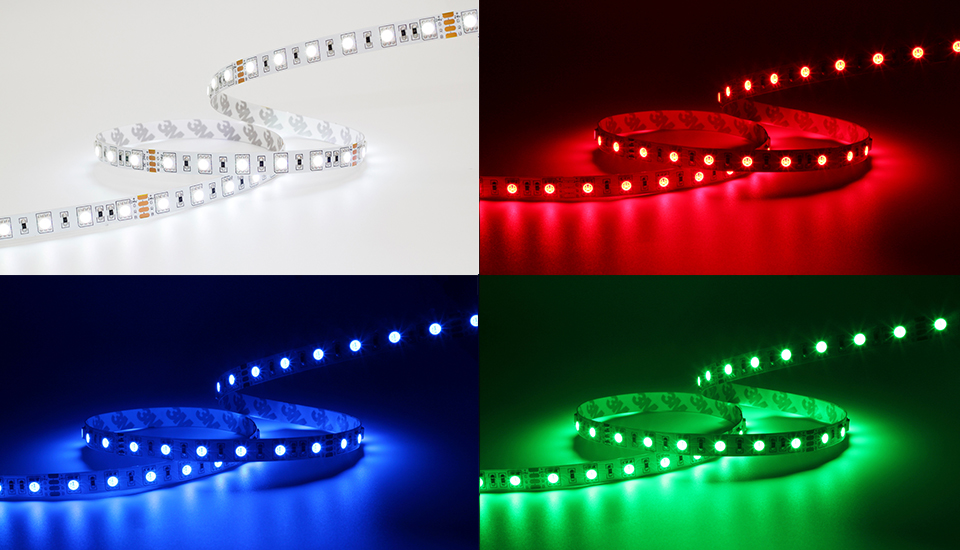

FH14C-P2-G1 50ZRGB 24V60S W10L05
Description
- Integrated RGB three-color light-emittng chip, bright and pure color.
- The overall color jump and gradient can be realized by the controller.
Parameters
- Size:5004±10mm
- Cutting unit:100±1mm
- Power:14.4W/m
- Voltage:DC24V
- Led Qty:60LEDs/M
- PCB:10mm
- IP:IP62
| LUMENS PER METER | |||||
| Product No. | FH14C-P2-G1 50ZRGB 24V60S W10L05 | ||||
| Red | 615~625nm /111lm | ||||
| Green | 520~530nm /281lm | ||||
| Blue | 460~470nm /60lm | ||||
| Product No. | Order Code |
| FH14C-P2-G1 50ZRGB 24V60S W10L05 | 930-2-02-0-000002 |
| Note: ' * ' =MTO(make-to-order) | |
