Buckle
1613 buckle
Basic Parameters
| Material： | Steel |
| Size： | 25mm |
| Other： | With screws |

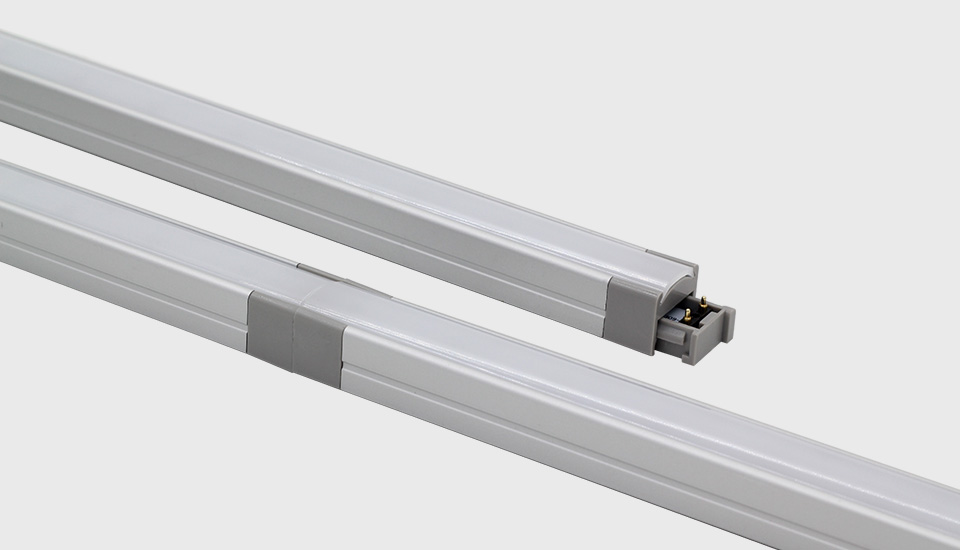

LD-1613 Seamless-connection LED Rigid Bar
Description
- DC24V constant voltage power supply
- High brightness, low power consumption
- LED Type: 2835 SMD LED

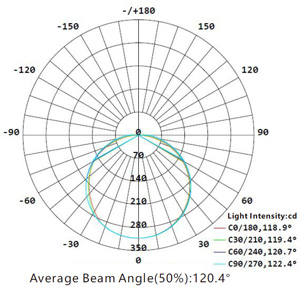

- LED light angle: 120 °
- LED Quantity: 240leds/1183mm, 180leds/888mm, 60leds/298mm, 30leds/150mm
- Operation Temperature: -20 ~ 50℃
- Life Time: >50,000 hours
- Available: diffuser cover
Parameters
- input voltage:DC24V
- Case Temperature:80 °C
- IP rating:IP20
- Power:3W/6W/12W/18W/24W
- PCB: 13mm
- CCT: 2700/3000/4000/6000

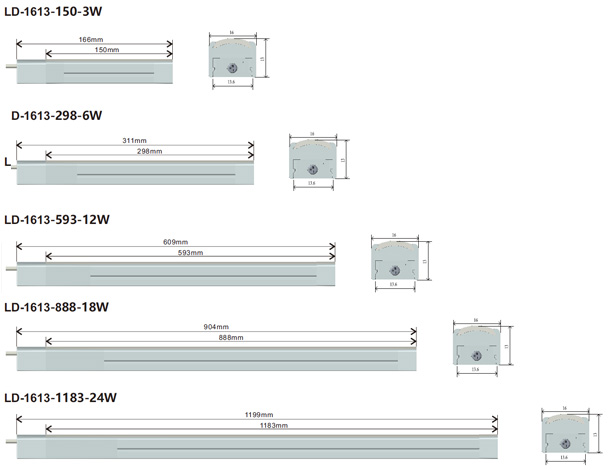

- Length:1183mm/888mm/298mm/150mm
