The key to choose superior LED strip lights，LEDMY knows.

Aug 16,2017

Firstly , let’s get to know what is LED strip light:

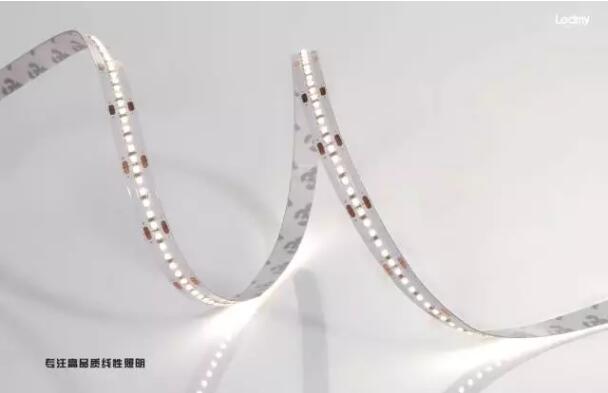

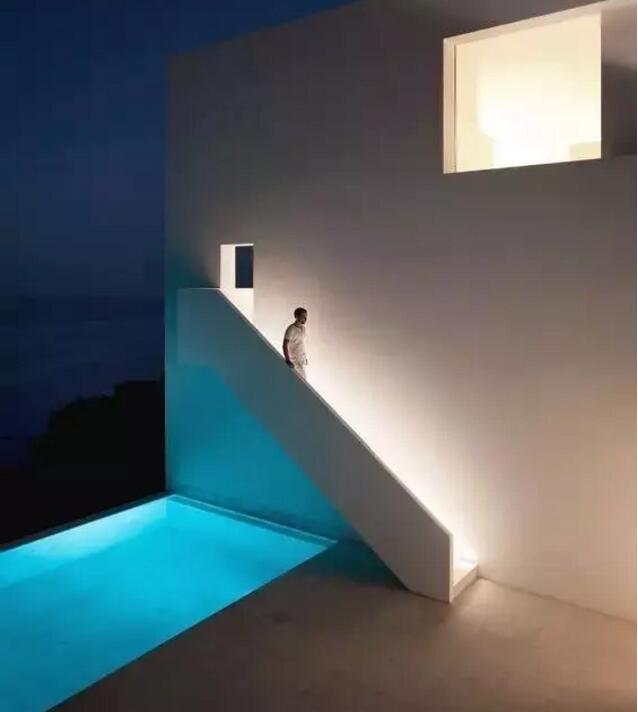

LED strip light has got it’s name for the shape of the product :it looks like a strip  . It is made of LED lights which assembled on strip-shaped FPC or PCB board . It has made it’s figure in decoration industry for it’s long service life(normal life span 80~100 thousand hours ) , energy conservation and eco-friendly performance . LED strip light is flexible product , which can be bend into the shape at your will . It is also easy to be made into all kinds of figures and letters (characters) . Thus , it is widely used in hotel ,shopping mall , home , cabinet , display shelf and so on . Functioning as main illumination , indirect illumination ,  dark slot illumination , contour lighting , decoration lighting and so on .

How do we choose high-quality LED strip lights ? Today I would unfould this secret for you .

---

1、Color consistency

What is color consistency ? In fact , lighting effect including two parts : 1.the unformity of the light emitting from the LED lights ;2.the color temprature of the LED lights . Why do I have to point this out ? Because this is a fundamental principle to distinguish good LED strip lights from the bad ones .

High quality LED lights with evenly emitting light means :

1.The luminance of every single LED light bead being the same .

2.The beginning and the end side of the LED strip light remains the same luminance . LED strip light is drived by power . When connecting too long of the lights , the out put voltage would become lower , thus result to the obvious luminance difference between the head and end . Now LEMDY can make the length of LED strip lights up to 30 meters and remain the consistent luminance .

So what is color temperature ?

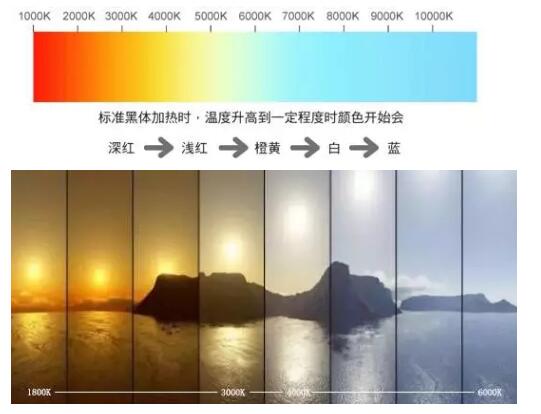

Color temperature means : to heat the standard  black body , when the temperature reaches a certain level , the color of the black body gradually change from crimson to pale red to orange to white to blue . When a light source holds the same color as the black body , we call the absolute temperature of the black body at that time the color temperature of this light source

During the process of iron forging , the black iron gradually turned red under the furnace temperature . This is the best example of the black body theory .

Color temperature under 3000K, the light is redish , with impression of steady and warmth , so is called warm color temperature .3000-6000K: there is no particularly evident visual effect on people’s mental state , so it’s called neutral color temperature .  Over 6000K, the color is bluish , with the impression of cold and cheerless ,  so it’s called cool color temperature .Usually , 3000K-4000K LED strip lights are applied in most of common space . But for certain space , cool color LED strips are essential , such as upscale hotels , villas and club house .

When it comes to the color temperature , there is anther concept that has to be brought to the topic–color tolerance adjustment. Color Tolerance Adjustment refers to the difference between the calculated formula and the target standard . To a single light source under calculation , the smaller the value , the higher the accuracy . But it should be noted that it represents only a light source under the color comparison , failed to detect the deviation under different light source .

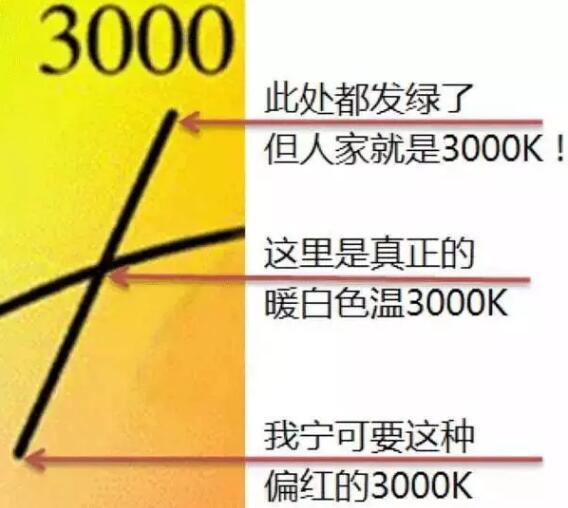

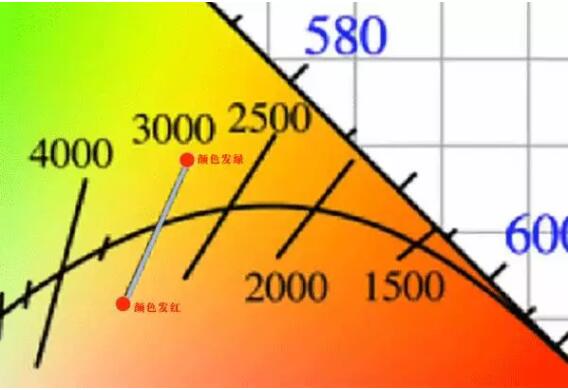

As the blackbody radiation photograph ( also called Plank Curve ) shows , there is some color difference although they are all 3000K .

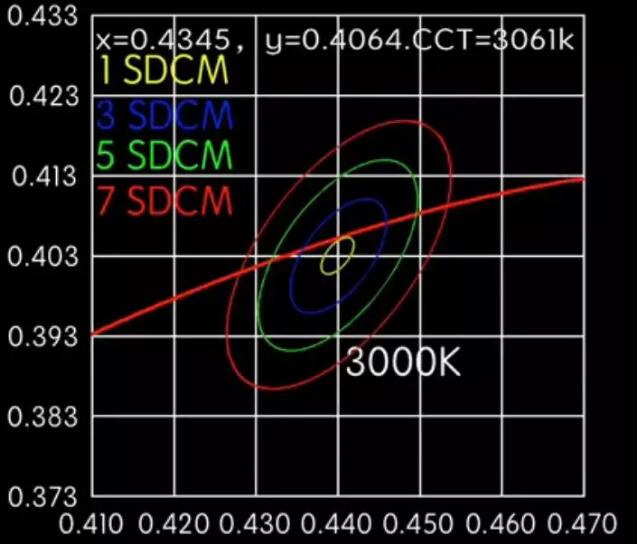

This circle could be acknowledged as step , normally human eyes can differenciate 5-7 steps.br /> The picture above shows that high quality LED strip lights are with pure color , also the color tolerance adjustment can not be identified by naked eyes . So when we are choosing LED strip light , we can ask the sales personnel that the CTA is within how many steps . Less than 5 steps , the product can be recognized as high quality LED strip lights.

---

2.Color Rendering Index(CRI)

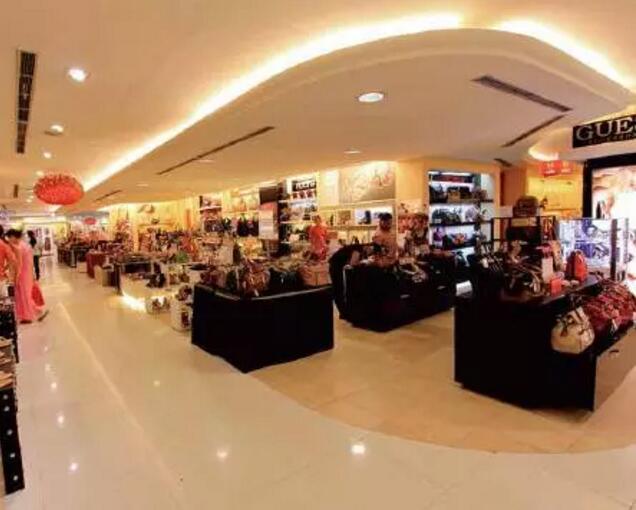

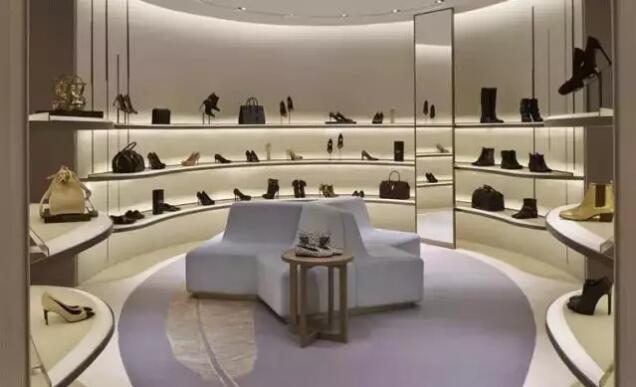

CRI is most significant part in occasion of LED strip lights using. When it applied to a large area as a basical lighting or display lighting used in showcase , professional LED strip llihts required CRI Ra＞80.Also National standard GB50034-201 requires.

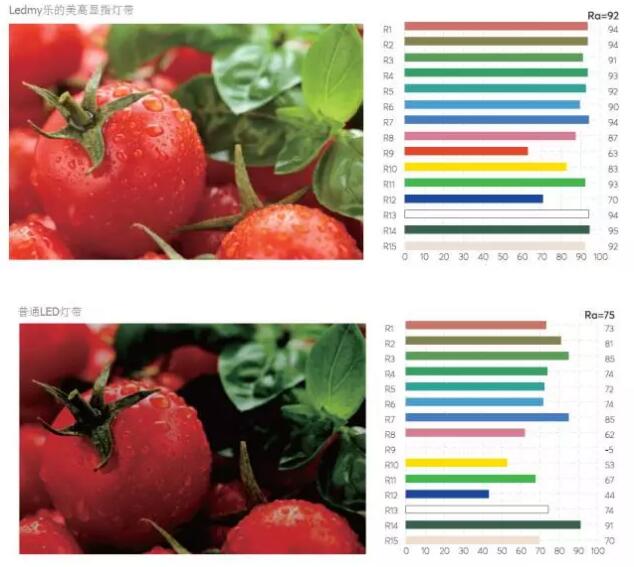

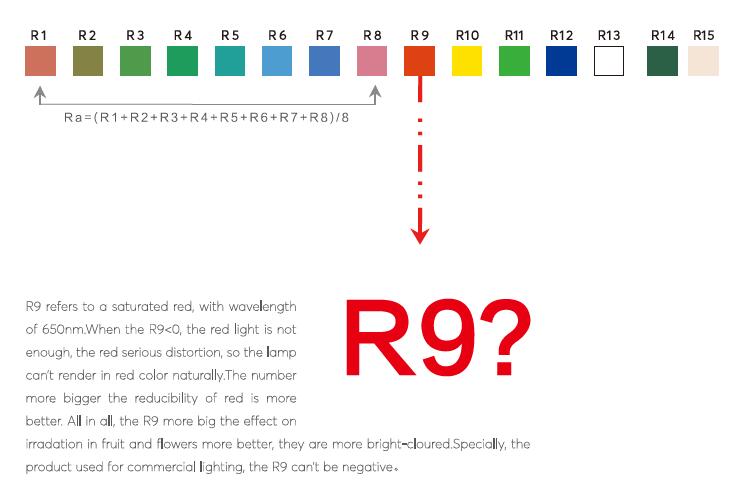

As the picture shows above,saturation of R9(Red) affect LED bead’s color rendering.



And CRI is vital parameter for special occasion lighting using. Avoid getting real effect different with expectation,confirm the CRI before order.

---

3.No dark area

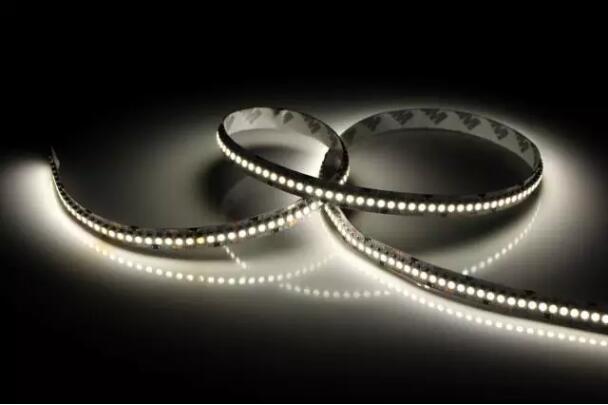

LED strip light with no dark area and no break is perfect,and it means all LED beads are work well and without any “death lights”.So we suggest you should choose professional company in this line, then you will get good quality guaranty.

---

4.Easy for installation

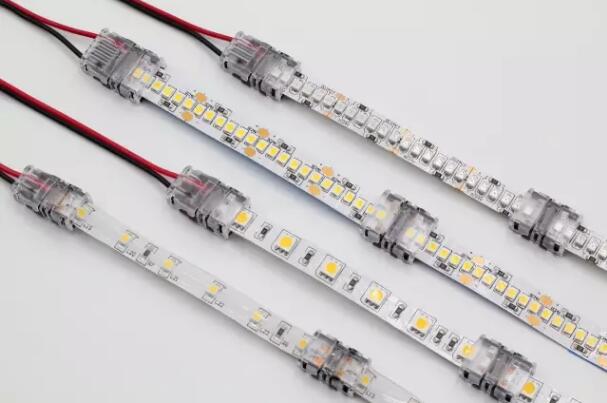

When LED strip lights using in trough. Facing to different shape/size/space of trough，we should thinking easy connection and installation methods first.Suitable connectors and buckles are benefit to save a lot of time and effort.Also they are easy to repair and replace.

---

5.High light efficiency

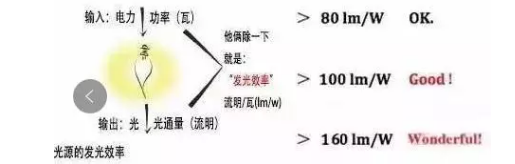

As for LED strip lights,the importance of light efficiency is related to the using occasion.Such as,when it used in trough as indirect lighting,the requirements of light efficiency is less than which used in large area,ceiling or showcase using. While, to be more professional,CRI Ra＞80，then light efficiency should be at least 80LM/W.And It’s awesome if light efficiency is up to 160LM/W.

If the electrical specification allow,drop pressure of power drive could be controlled,LED strip lights could be connected more longer.On the one hand,that means more power saving.

To the issue of max connection length it’s according to various actual occasion.And we suggest you should know it in advance before your determination.
