End cap kit
front outlet end cap
723-0507-070
end cap without hole
723-0507-071
Basic parameters
| Material： | Silicon glue |
| Other： |
|
Connector
Intermediate connector
804-01-0091
connector with wire
804-01-0090
Basic parameters
| Material： | Copper with plastic |
Bracket
Bracket
701-0107-851
Basic parameters
| Material： | Aluminum alloy |
| Package： | Ten |
| Other： | With screws |
Aluminum Profile
Aluminum Profile 1meters
913-01-1299-009
Aluminum Profile 2meters
913-01-1299-014
Basic parameters
| Material： | Aluminum alloy |
| Ohter： |
|
Bendable Fixed Clip
1 meters
913-01-0299-008
0.5 meters
913-01-0299-009
Basic parameters
| Material： | Aluminum alloy |
| Other： |

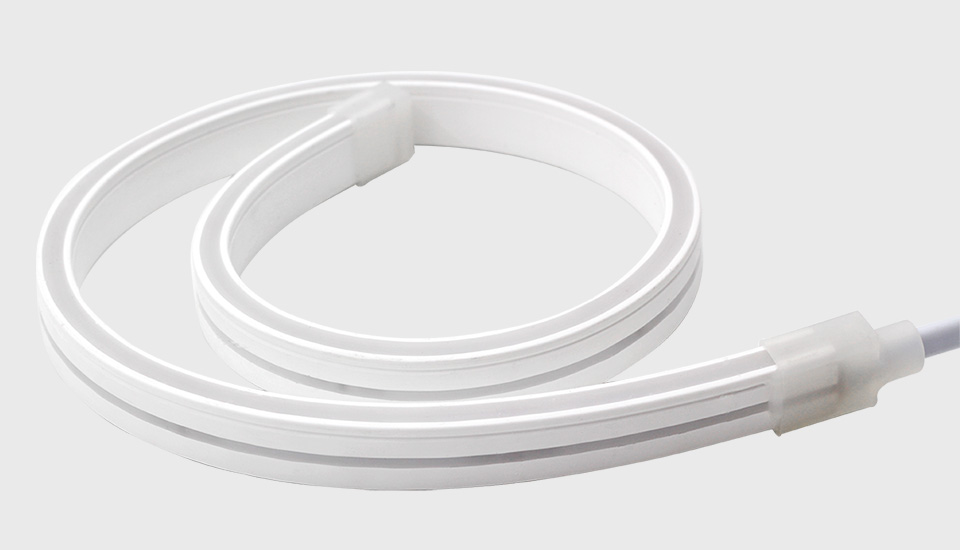

FEN10WS-P7-G1 28HZ9x 24V120S 0612L05
Description
- Seamless and uniform light output, dot free
- Bendable at horizontal direction
- IP67 protection
- Robust housing with high quality silicon, UV proof for true outdoor application
- Easy installation with clips and bendable track
- Cut-able for ?exible application
Parameters
- Size:5050±10mm
- Cutting unit:50mm
- Power:10W/m
- Voltage:DC24V
- LEDs：120LEDs/M
- PCB:6mm
- CRI:>90
- IP:IP67
| 每米光通量 | |||||
| 型號 | FEN10WS-P7-G1 28HZ9x 24V120S 0612L05 | ||||
| 2700K | 250lm | ||||
| 3000K | 270lm | ||||
| 4000K | 280lm | ||||
| 6000K | 270lm | ||||
| Product No. | Order Code |
| FEN10WS-P7-G1 28HZ927 24V120S 0612L05 | 931-7-10-0-000115 |
| FEN10WS-P7-G1 28HZ930 24V120S 0612L05 | 931-7-10-0-000116 |
| FEN10WS-P7-G1 28HZ940 24V120S 0612L05 | 931-7-10-0-000117 |
| FEN10WS-P7-G1 28HZ960 24V120S 0612L05 | 931-7-10-0-000119 |
| Note: ' * ' =MTO(make-to-order) | |
