Bendable Fixed Clip

1 meters
913-01-0299-006
0.5 meters
913-01-0299-007
Basic parameters
Material： Aluminum alloy
Other：
End cap kit

front outlet end cap
723-0507-092
end cap without hole
723-0507-093
end cap bottom outlet
723-0507-096
end cap side outlet
723-0507-028
Basic parameters
Material： Silicon glue
Other：
Connector

Forward-cable connector
804-01-0185
Side-cable connector
804-01-0186
Basic parameters
Material： Copper with plastic
Bracket

Bracket
701-0112-341
Basic parameters
Material： Aluminum alloy
Package： Ten
Other： With screws
Aluminum Profile

Aluminum Profile 1meters
913-01-1299-011
Aluminum Profile 2meters
913-01-1299-010
Basic parameters
Material： Aluminum alloy
Ohter：
productDetails

Projects

Volvo Auto 4s Shop


Beijing Volvo 4S shop using a large number of hidden auxiliary lighting, outdoor use the strip lights as decorative lighting, show the outline the three-dimensional of outline. indoor use the Lezun series linear lig hting to create a high-quality light environment and Upgrade the brand.

productDetails

Contact

Contact Us

Tel:+ 86 (755) 2765 8410
Fax:+ 86 (755) 2765 8502

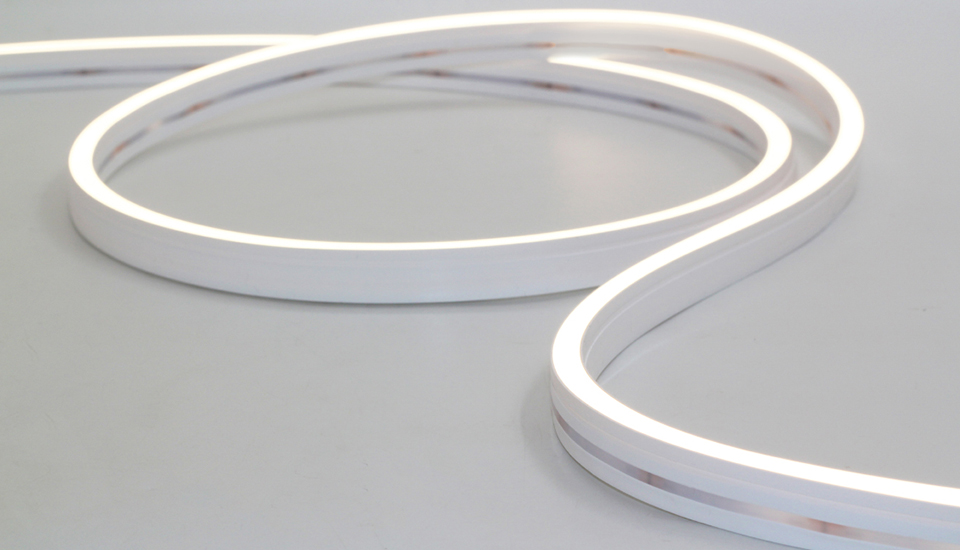

FEN14WS-P7-G1 28HZ9x 24V120S 1018L05

Description

  • Seamless and uniform light output, dot free
  • Bendable at horizontal direction
  • IP67 protection
  • Robust housing with high quality silicon, UV proof for true outdoor application
  • Easy installation with clips and bendable track
  • Cut-able for ?exible application
description

Parameters

  • Size:5050±5mm
  • Cutting unit:50±2mm
  • Power:14W/m
  • Voltage:DC24V
  • LED type:2835
  • Led Qty:120LEDs/M
  • CRI: >90
  • IP:IP67
LUMENS PER METER
Product No. FEN14WS-P7-G1 28HZ9x 24V120S 1018L05
2700K 450lm
3000K 460lm
4000K 470lm
6000K 460lm
Product No. Order Code
FEN14WS-P7-G1 28HZ927 24V120S 1018L05 931-7-10-0-000001
FEN14WS-P7-G1 28HZ930 24V120S 1018L05 931-7-10-0-000002
FEN14WS-P7-G1 28HZ940 24V120S 1018L05 931-7-10-0-000003
FEN14WS-P7-G1 28HZ960 24V120S 1018L05 931-7-10-0-000014
Note: ' * ' =MTO(make-to-order)
×
