End cap kit
front outlet end cap
723-0507-072
end cap without hole
723-0507-073
Basic parameters
| Material： | Silicon glue |
| Other： | Two front outlet end cap + four end cap without hole |
FEN18W-P7-G1 28HZ9x 24V210S 1307L05

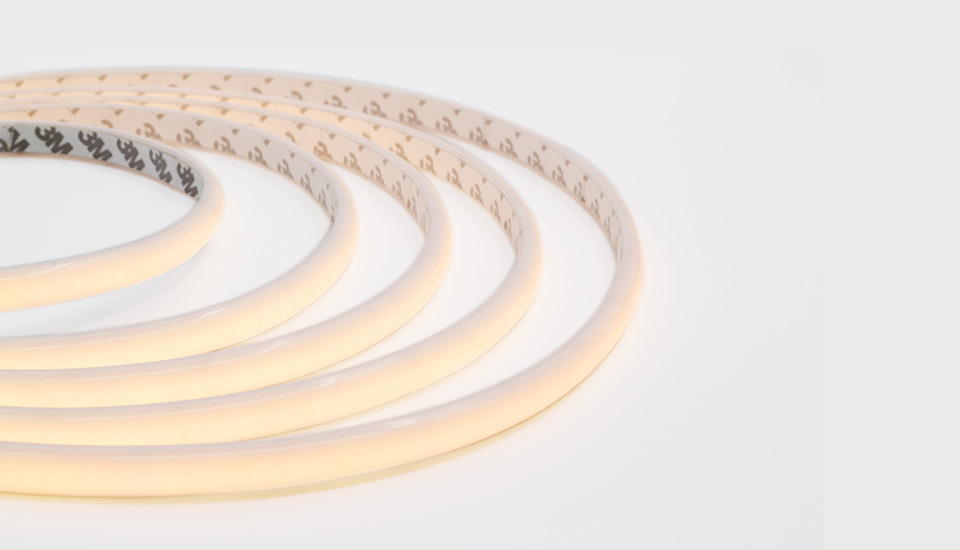

Description
- Seamless and uniform light output, dot free
- Bendable at vertical direction
- IP67 protection
- Robust housing with high quality silicon, UV proof for true outdoor application
- Easy installation with clips
- Cut-able for flexible application
Parameters
- Size:5050±5mm
- Cutting unit:33.3±2mm
- Power:18W/m
- Voltage:DC24V
- LED type:2835
- Led Qty:210LEDs/M
- CRI: >90
- IP:IP67
| LUMENS PER METER | |||||
| Product No. | FEN18W-P7-G1 28HZ9x 24V210S 1307L05 | ||||
| 2700K | 1640lm | ||||
| 3000K | 1710lm | ||||
| 4000K | 1680lm | ||||
| 6000K | 1690lm | ||||
| Product No. | Order Code |
| FEN18W-P7-G1 28HZ927 24V210S 1307L05 | 931-7-10-0-000008 |
| FEN18W-P7-G1 28HZ930 24V210S 1307L05 | 931-7-10-0-000009 |
| FEN18W-P7-G1 28HZ940 24V210S 1307L05 | 931-7-10-0-000010 |
| FEN18W-P7-G1 28HZ960 24V210S 1307L05 | 931-7-10-0-000015 |
