Connector

Triangular application

Cross application

Right angle application
Basic parameters
Rated voltage: 12~24v
Rated current: <4A
working environment: moisture-proof ventilation -20 ~ 60 degrees environment
Temperature resistance: -40-160℃
LED Quick connector-8mm

LD-SE-N8BB-2

LD-SE-N8XB-2
Base parameters
Shell: Polycarbonate
Contact chip: Environmentally hardware material,high-precision copper
Rated voltage: 0-36V
Rated current: 5A
Wire joint

LD-XC-JXD-D2

LD-XC-JXD-H2

LD-XC-JXD-T2
Base parameters
Shell: Polycarbonate
Contact conductor: high-precision pure copper
Rated voltage: 0-36V
Rated current: 9A
Flame retardant rating: accord with UL-94-V0
productDetails

Projects

The Peninsula Hotel Shanghai


The hotel located on the historic Bund, is the only new building on the Bund for 60 years. The hotel's decoration design recreates golden days’ style and features of shanghai as "Paris in the East" in the 1920s and 1930s In order to retain the retro style of hotel, LEDMY adopt hidden strip to instead of the downlight, which not only satisfied the decorative effect, but also with the lighting functions.

productDetails

Contact

Contact Us

Tel:+ 86 (755) 2765 8410
Fax:+ 86 (755) 2765 8502

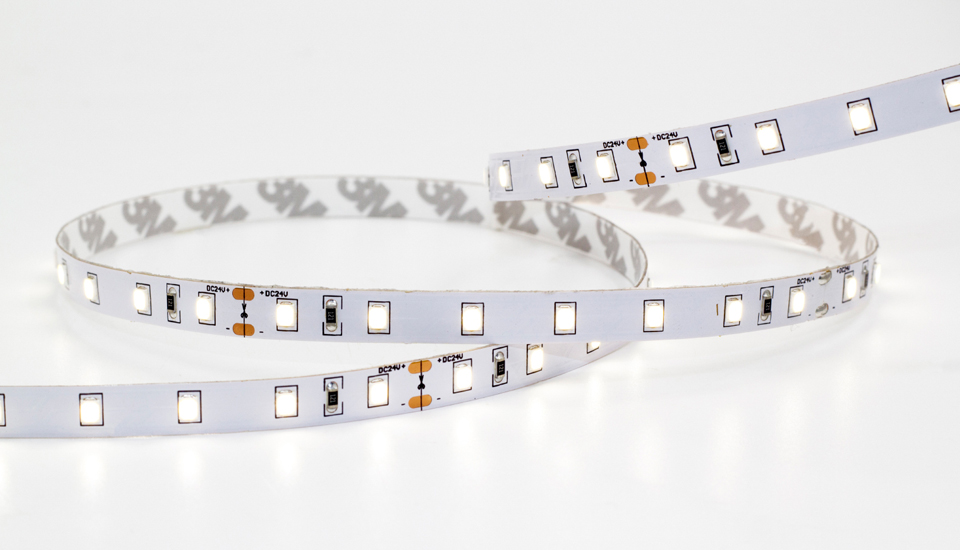

FH05W-P0-G1 28HX8x 24V70S W08L05

Description

  • Ultra-high efficiency, up to 180lm/w, more energy-saving.
description

Parameters

  • Size:5004±10mm
  • Cutting unit:100±1mm
  • Power:4.8W/m
  • Voltage:DC24V
  • Led Qty:70LEDs/M
  • PCB:8mm
  • CRI:>80
  • IP:IP20
LUMENS PER METER
Product No. FH05W-P0-G1 28HX8x 24V70S W08L05
2200K 504lm
2400K 518lm
2700K 562lm
3000K 581lm
4000K 600lm
5000K 590lm
6000K 590lm
Product No. Order Code
FH05W-P0-G1 28HX822 24V70S W08L05* 930-0-10-0-000071
FH05W-P0-G1 28HX824 24V70S W08L05 930-0-10-0-000072
FH05W-P0-G1 28HX827 24V70S W08L05 930-0-10-0-000073
FH05W-P0-G1 28HX830 24V70S W08L05 930-0-10-0-000074
FH05W-P0-G1 28HX840 24V70S W08L05 930-0-10-0-000075
FH05W-P0-G1 28HX850 24V70S W08L05 930-0-10-0-000076
FH05W-P0-G1 28HX860 24V70S W08L05 930-0-10-0-000077
Note: ' ' =MTO(make-to-order)

Download

Installation Instruction

  •
  •
×
