Connector
Triangular application
Cross application
Right angle application
Basic parameters
| Rated voltage： | 12~24v |
| Rated current： | <4A |
| working environment： | moisture-proof ventilation -20 ~ 60 degrees environment |
| Temperature resistance： | -40-160℃ |
LED Quick connector-10mm
LD-SE-DJ-N10BB-2-1
LD-SE-DJ-N10XB-2-1
LD-SE-N10BB-2-1
LD-SE-N10XB-2-1
LD-TG-N10BB-2-1
LD-TG-N10XB-2-1
Base parameters
| Shell: | Polycarbonate |
| Contact chip: | Environmentally hardware material,high-precision copper |
| Rated voltage： | 0-36V |
| Rated current： | 5A |
Wire joint
LD-XC-JXD-D2
LD-XC-JXD-H2
LD-XC-JXD-T2
Base parameters
| Shell： | Polycarbonate |
| Contact conductor： | high-precision pure copper |
| Rated voltage： | 0-36V |
| Rated current： | 9A |
| Flame retardant rating: | accord with UL-94-V0 |

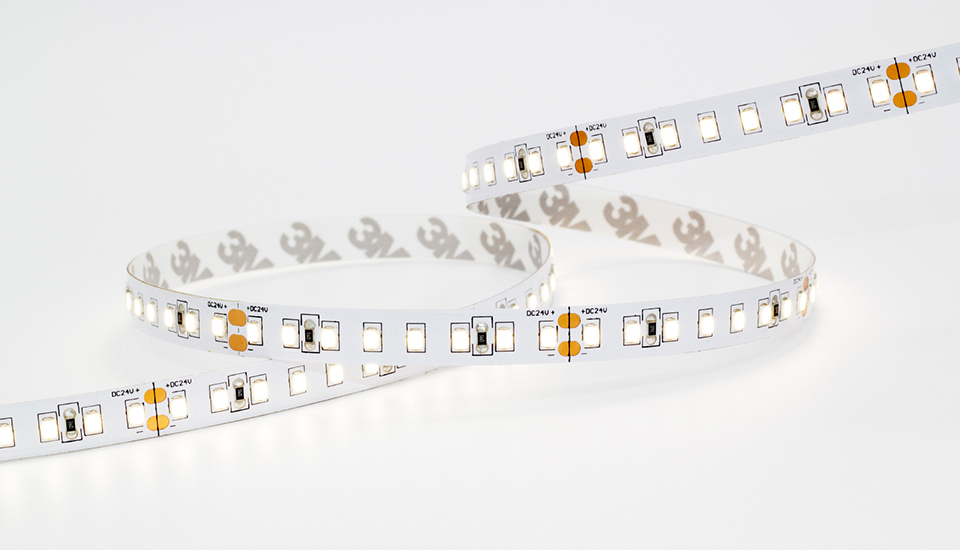

FH10W-P0-G1 28HX8x 24V128S W10L05
Description
- Ultra-high efficiency, up to 180lm/w, more energy-saving.
Parameters
- Size:5004±10mm
- Cutting unit:62.5±1mm
- Power:9.6W/m
- Voltage:DC24V
- Led Qty:128LEDs/M
- PCB:10mm
- CRI:>80
- IP:IP20
| LUMENS PER METER | |||||
| Product No. | FH10W-P0-G1 28HX8x 24V128S W10L05 | ||||
| 2200K | 1152lm | ||||
| 2400K | 1219lm | ||||
| 2700K | 1258lm | ||||
| 3000K | 1296lm | ||||
| 4000K | 1392lm | ||||
| 5000K | 1354lm | ||||
| 6000K | 1363lm | ||||
| Product No. | Order Code |
| FH10W-P0-G1 28HX822 24V128S W10L05* | 930-0-10-0-000134 |
| FH10W-P0-G1 28HX824 24V128S W10L05 | 930-0-10-0-000135 |
| FH10W-P0-G1 28HX827 24V128S W10L05 | 930-0-10-0-000136 |
| FH10W-P0-G1 28HX830 24V128S W10L05 | 930-0-10-0-000137 |
| FH10W-P0-G1 28HX840 24V128S W10L05 | 930-0-10-0-000138 |
| FH10W-P0-G1 28HX850 24V128S W10L05 | 930-0-10-0-000139 |
| FH10W-P0-G1 28HX860 24V128S W10L05 | 930-0-10-0-000140 |
| Note: ' * ' =MTO(make-to-order) | |
