End cap kit
end cap without hole
723-0507-094
end cap bottom outlet
723-0507-095
end cap side outlet
723-0507-095
Basic parameters
| Material： | Silicon glue |
| Other： |
|
Bracket
Bracket
701-0112-268
Basic parameters
| Material： | Aluminum alloy |
| Package： | Ten |
| Other： | With screws |
Aluminum Profile
Aluminum Profile 1meters
913-01-1299-017
Aluminum Profile 2meters
913-01-1299-018
Basic parameters
| Material： | Aluminum alloy |
| Ohter： |
|

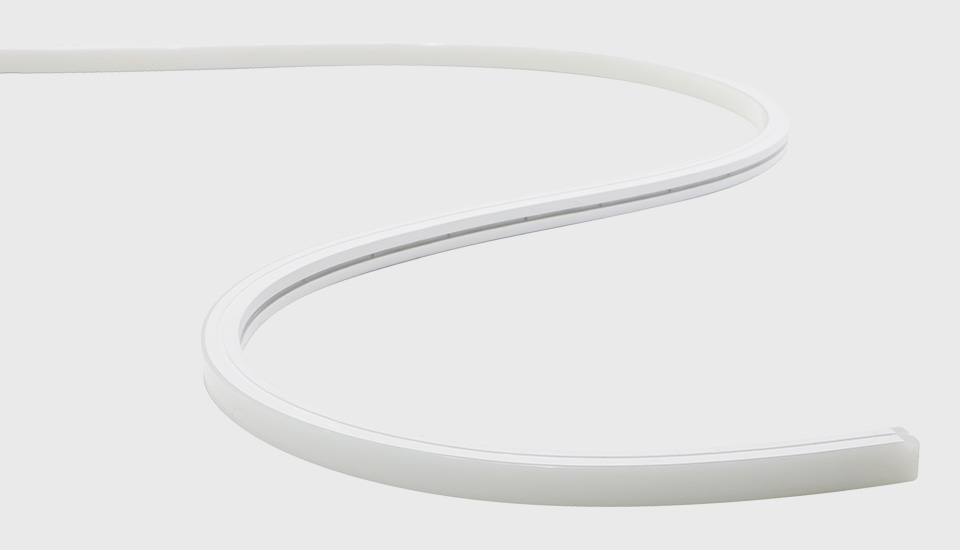

FEN16W-P7-G1 28HZ9x 24V120S 1616L05
Description
- Seamless and uniform light output, dot free
- Bendable at vertical direction
- IP67 protection
- Robust housing with high quality silicon, UV proof for true outdoor application
- Easy installation with clips
- Cut-able for flexible application
Parameters
- Size:5050±5mm
- Cutting unit:50±2mm
- Power:16W/m
- Voltage:DC24V
- LED type:2835
- Led Qty:120LEDs/M
- CRI: >90
- IP:IP67
| LUMENS PER METER | |||||
| Product No. | FEN16W-P7-G1 28HZ9x 24V120S 1616L05 | ||||
| 2700K | 920lm | ||||
| 3000K | 940lm | ||||
| 4000K | 960lm | ||||
| 6000K | 990lm | ||||
| Product No. | Order Code |
| FEN16W-P7-G1 28HZ927 24V120S 1616L05 | 931-7-10-0-000143 |
| FEN16W-P7-G1 28HZ930 24V120S 1616L05 | 931-7-10-0-000144 |
| FEN16W-P7-G1 28HZ940 24V120S 1616L05 | 931-7-10-0-000145 |
| FEN16W-P7-G1 28HZ960 24V120S 1616L05 | 931-7-10-0-000147 |
| Note: ' * ' =MTO(make-to-order) | |
