Connector

Triangular application

Cross application

Right angle application
Basic parameters
Rated voltage: 12~24v
Rated current: <4A
working environment: moisture-proof ventilation -20 ~ 60 degrees environment
Temperature resistance: -40-160℃
Wire joint

LD-XC-JXD-D2

LD-XC-JXD-H2

LD-XC-JXD-T2
Base parameters
Shell: Polycarbonate
Contact conductor: high-precision pure copper
Rated voltage: 0-36V
Rated current: 9A
Flame retardant rating: accord with UL-94-V0
LED Quick connector-8mm

LD-SE-DJ-N8BB-2-1

LD-SE-DJ-N8XB-2-1

LD-SE-N8BB-2-1

LD-SE-N8XB-2-1

LD-TG-N8BB-2-1

LD-TG-N8XB-2-1
Base parameters
Shell: Polycarbonate
Contact chip: Environmentally hardware material,high-precision copper
Rated voltage: 0-36V
Rated current: 5A
productDetails

Projects

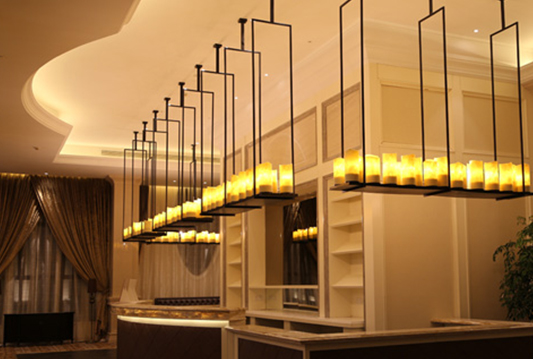

Jinjiang International Resort Hotel


The resort is a relaxing place to live in, and there is strict requirement on lights. LEDMY adopt the customized CCT strip to make different product selection and lighting design in the different environment ,like guest rooms, suites, lovers' rooms. It is helpful for creating right atmosphere, but also combining with lighting function.

productDetails

Contact

Contact Us

Tel:+ 86 (755) 2765 8410
Fax:+ 86 (755) 2765 8502

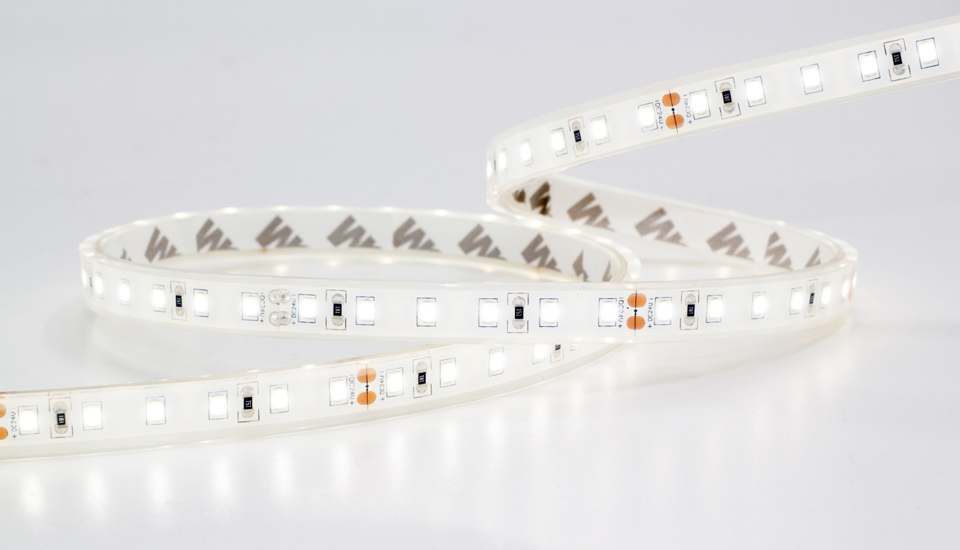

FH08W-P8-G1 28LZ9x 24V96S W08L05

Description

  • High CRI; CRI>90.
  • High Efficiency, Up to 100lm/w.
  • High color consistency, within 5 steps SDCM(3 steps Optional).
description

Parameters

  • Size:5018±10mm
  • Cutting unit:62.5±1mm
  • Power:7.6W/m
  • Voltage:DC24V
  • Led Qty:96LEDs/M
  • PCB:10.5mm
  • CRI:>90
  • IP:IP68
LUMENS PER METER
Product No. FH08W-P8-G1 28LZ9x 24V96S W08L05
2400K 502lm
2700K 519lm
3000K 561lm
4000K 587lm
6000K 595lm
Product No. Order Code
FH08W-P8-G1 28LZ924 24V96S W08L05 930-8-02-0-000016
FH08W-P8-G1 28LZ927 24V96S W08L05 930-8-02-0-000017
FH08W-P8-G1 28LZ930 24V96S W08L05 930-8-02-0-000018
FH08W-P8-G1 28LZ940 24V96S W08L05 930-8-02-0-000019
FH08W-P8-G1 28LZ960 24V96S W08L05 930-8-02-0-000021
Note: ' ' =MTO(make-to-order)

Download

Installation Instruction

  •
  •
×
