Connector
Triangular application
Cross application
Right angle application
Basic parameters
| Rated voltage： | 12~24v |
| Rated current： | <4A |
| working environment： | moisture-proof ventilation -20 ~ 60 degrees environment |
| Temperature resistance： | -40-160℃ |
Wire joint
LD-XC-JXD-D2
LD-XC-JXD-H2
LD-XC-JXD-T2
Base parameters
| Shell： | Polycarbonate |
| Contact conductor： | high-precision pure copper |
| Rated voltage： | 0-36V |
| Rated current： | 9A |
| Flame retardant rating: | accord with UL-94-V0 |
LED Quick connector-10mm
LD-SE-DJ-N10BB-2-1
LD-SE-DJ-N10XB-2-1
LD-SE-N10BB-2-1
LD-SE-N10XB-2-1
LD-TG-N10BB-2-1
LD-TG-N10XB-2-1
Base parameters
| Shell: | Polycarbonate |
| Contact chip: | Environmentally hardware material,high-precision copper |
| Rated voltage： | 0-36V |
| Rated current： | 5A |

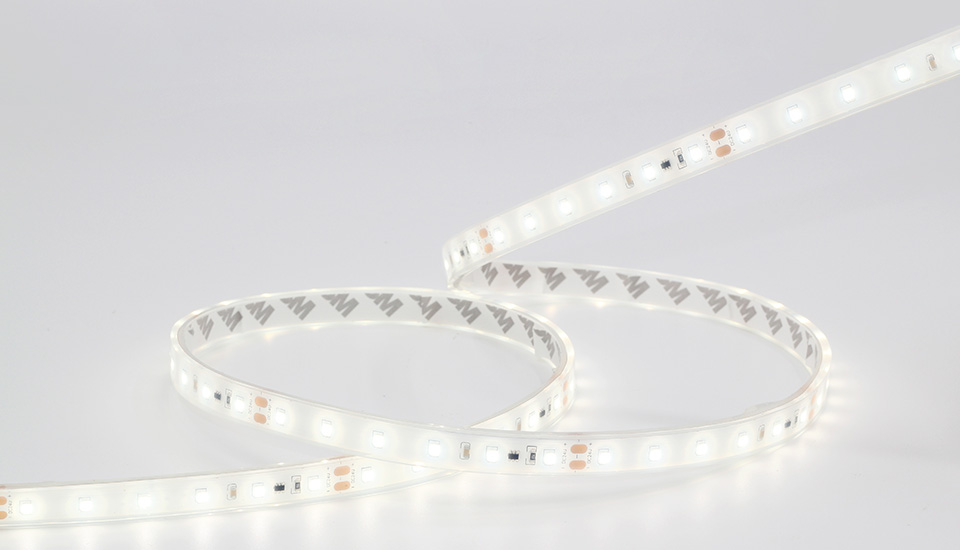

FP10W-P8-G1 28HZ9x 24VC60S W10L05
Description
- Under constant current condition, brightness output is more stable, life is longer.
- High brightness consistency between different units and batches, more suitable for large projects.
Parameters
- Size:5064±10mm
- Cutting unit:100±1mm
- Power:10W/m
- Voltage:DC24V
- Led Qty:60LEDs/M
- PCB:12.5mm
- CRI:>90
- IP:IP65
| LUMENS PER METER | |||||
| Product No. |
FP10W-P8-G1 28HZ9x 24VC60S W10L05
|
||||
| 2200K | 660lm | ||||
| 2400K | 740lm | ||||
| 2700K | 770lm | ||||
| 3000K | 820lm | ||||
| 4000K | 880lm | ||||
| 5000K | 930lm | ||||
| 6000K | 900lm | ||||
| Product No. | Order Code |
| FP10W-P8-G1 28HZ924 24VC60S W10L05 | 932-8-10-0-000001 |
| FP10W-P8-G1 28HZ927 24VC60S W10L05 | 932-8-10-0-000002 |
| FP10W-P8-G1 28HZ930 24VC60S W10L05 | 932-8-10-0-000003 |
| FP10W-P8-G1 28HZ940 24VC60S W10L05 | 932-8-10-0-000004 |
| FP10W-P8-G1 28HZ960 24VC60S W10L05 | 932-8-10-0-000005 |
| Note: ' * ' =MTO(make-to-order) | |
