Connector
Intermediate connector
804-01-0085
connector with wire
804-01-0084
Basic parameters
| Material： | Copper with plastic |
Bracket
Bracket
701-0112-341
Basic parameters
| Material： | Aluminum alloy |
| Package： | Ten |
| Other： | With screws |
Bendable Fixed Clip
1 meters
913-01-0299-006
0.5 meters
913-01-0299-007
Basic parameters
| Material： | Aluminum alloy |
| Other： |
End cap kit
front outlet end cap
723-0507-092
end cap without hole
723-0507-093
end cap bottom outlet
723-0507-096
end cap side outlet
723-0507-028
Basic parameters
| Material： | Silicon glue |
| Other： |
|
Aluminum Profile
Aluminum Profile 1meters
913-01-1299-011
Aluminum Profile 2meters
913-01-1299-010
Basic parameters
| Material： | Aluminum alloy |
| Ohter： |
|

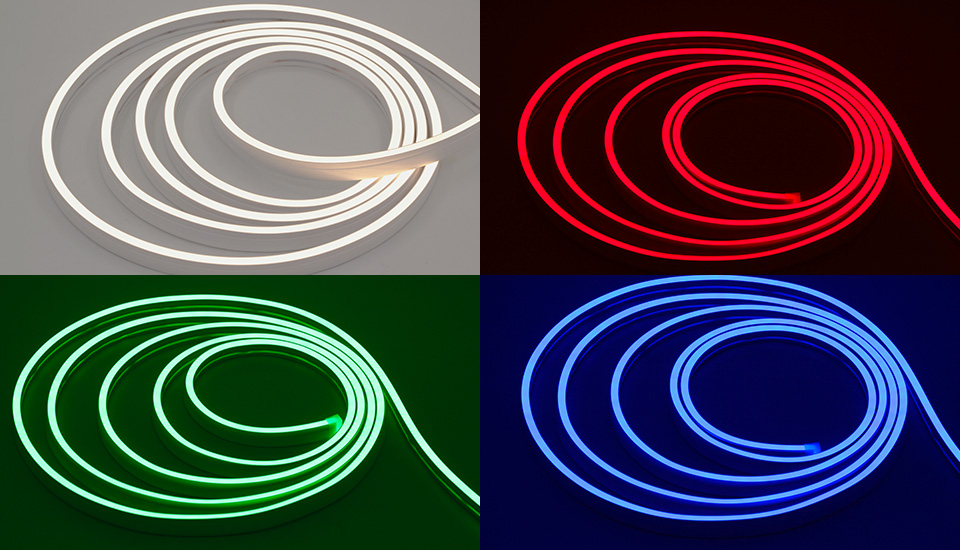

FEN14CS-P7-G1 50ZRGB8x 24V60S 1018L05
Description
- Seamless and uniform light output, dot free
- Bendable at horizontal direction
- IP67 protection
- Robust housing with high quality silicon, UV proof for true outdoor application
- Easy installation with clips and bendable track
- Cut-able for ?exible application
Parameters
- Size:5050±5mm
- Cutting unit:100±2mm
- Power:14.4W/m
- Voltage:DC24V
- LED type:5050
- CIR: RGB/80
- Led Qty:60LEDs/M
- IP:IP67
| LUMENS PER METER | |||||
| Product No. | FEN14CS-P7-G1 50ZRGB 24V60S 1018L05 | ||||
| Red | 60lm | ||||
| Green | 160lm | ||||
| Blue | 40lm | ||||
| 3000 | 165lm | ||||
| 4000 | 180lm | ||||
| 6000 | 100lm | ||||
| Product No. | Order Code |
| FEN14CS-P7-G1 50ZRGB830 24V60S 1018L05 | 931-7-02-0-000020 |
| FEN14CS-P7-G1 50ZRGB840 24V60S 1018L05 | 931-7-02-0-000018 |
| FEN14CS-P7-G1 50ZRGB860 24V60S 1018L05 | 931-7-02-0-000022 |
| Note: ' * ' =MTO(make-to-order) | |
