Screw
Screw
Basic parameters
| Material： | metal |
| Other： | Ten |
End cap glue
End cap glue
Basic parameters
| Material： | Aluminum tube |
| Package： | One |
End cap kit
end cap with hole
end cap without hole
Basic parameters
| Material： | Silicon glue |
| Other： | Five end cap with hole |
| Other： | Five end cap without hole |
Bracket
Bracket
Basic parameters
| Material： | Aluminum alloy |
| Package： | Ten |
| Other： | With screws |
Glue tip mouth
Glue tip mouth
Basic parameters
| Material： | Plastic |
| Package： | One |

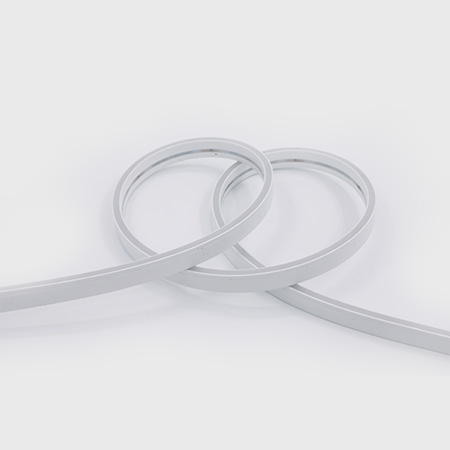

FEN10WS-P7-G1 28LZ9x 24V144S 0410L05
Description
- Seamless and uniform light output, dot free
- Bendable at horizontal direction
- IP67 protection
- Robust housing with high quality silicon, UV proof for true outdoor application
- Easy installation with clips and bendable track
- Cut-able for ?exible application
Parameters
- Size:5050±5mm
- Cutting unit:50±2mm
- Power:10W/m
- Voltage:DC24V
- LED type:2835
- Led Qty:144LEDs/M
- CRI: >90
- IP:IP67
| LUMENS PER METER | |||||
| Product No. | FEN10WS-P7-G1 28LZ9x 24V144S 0410L05 | ||||
| 2700K | 130lm | ||||
| 3000K | 150lm | ||||
| 4000K | 160lm | ||||
| 6000K | 130lm | ||||
| Product No. | Order Code |
| FEN10WS-P7-G1 28LZ927 24V144S 0410L05 | / |
| FEN10WS-P7-G1 28LZ930 24V144S 0410L05 | / |
| FEN10WS-P7-G1 28LZ940 24V144S 0410L05 | / |
| FEN10WS-P7-G1 28LZ960 24V144S 0410L05 | / |
| Note: ' * ' =MTO(make-to-order) | |
