Connector
strip to strip connector
strip to driver connector
Basic parameters
| Rated voltage： | 12~24v |
| Rated current： | <4A |
| working environment： | moisture-proof ventilation -20 ~ 60 degrees environment |
| Temperature resistance： | -40-160℃ |

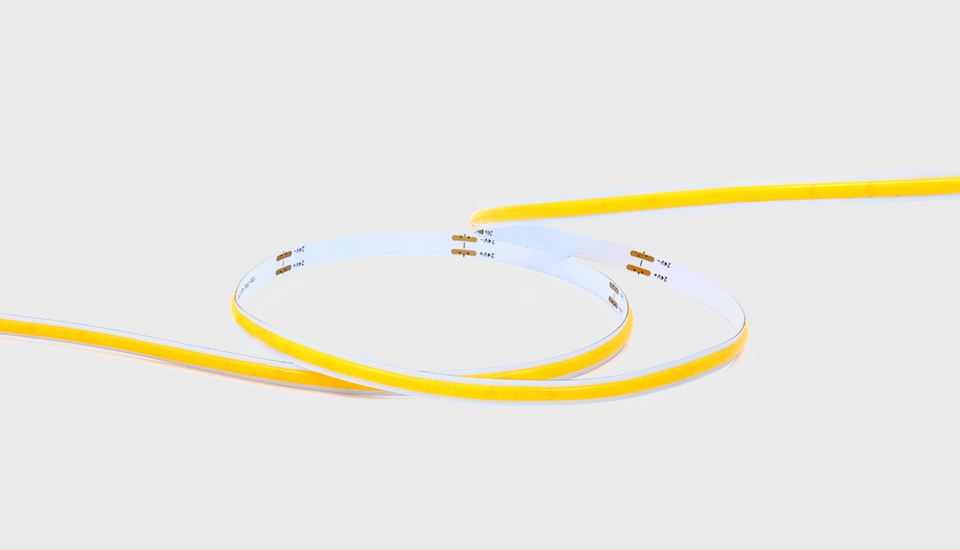

FE06W-P0-G1 COB9x 24V480S W06L05
Description
- beam angle 180°.
- Efficiency 90 lm/w.
- Easy to install and preserve.
Parameters
- Dimension:5004±10mm
- Cutting unit:50±1mm
- Power:6W/m
- Voltage:DC24V
- Led Qty:480LEDs/M
- PCB:6mm
- CRI: >90
- IP:IP20
| LUMENS PER METER | |||||
| Product No. | FE06W-P0-G1 COB9x 24V480S W06L05 | ||||
| 2700K | 480lm | ||||
| 3000K | 580lm | ||||
| 4000K | 630lm | ||||
| 6500K | 600lm | ||||
| Product No. | Order Code |
| FE06W-P0-G1 COB927 24V480S W06L05 | / |
| FE06W-P0-G1 COB930 24V480S W06L05 | / |
| FE06W-P0-G1 COB940 24V480S W06L05 | / |
| FE06W-P0-G1 COB965 24V480S W06L05 | / |
| Note: ' * ' =MTO(make-to-order) | |
