Clips

Basic parameters
Material: Aluminum alloy
Quantity: 10pc
Screw

Basic parameters
Material: Aluminum alloy
Quantity: 10pc
Aluminum Profile

Basic parameters
Material: Aluminium alloy
Size: 16×8.5mm
productDetails

Projects

"Box Project" of Wuhan Space Art Group Exhibition


The "City of Design Space Design Exhibition Competition" organized by the Wuhan government is located on Jianghan Road, Wuhan. The design is a "box project" for container transformation in a commercial street. The upper and lower floors have 6-8 spaces with an effective area of 90 square meters. In coordination with the designer's idea, most spaces use artistic shapes composed of a large number of led strips and linear lights.
Indoor application
The space structure dark groove uses our adjustable temperature (2400-6000k) led strip of about 30 meters, 45-degree angle installation profile, the soft decoration and rest area using blue light strip (2 different powers total 9 meters), In addition, two types of embedded mini linear lights (4000k) in different positions are used. The ceiling space is embedded with 1018 neon strips (or 0816 neon) to make curved side light-emitting art linear (4000k),the neon 1018 is embedded, and the 360-degree led strip is used as a ceiling and hoisting combination (3000k) to show the audience a colorful light art.
Outdoor applications
The wooden grille floor is used as the floor-walking profile with a 2400k waterproof low brightness strip. The glass shape on the second floor aisle and the top glass is selected from 20 meters RGB led strip to make a puzzle pattern. The rich color patterns around the outdoor wall use flexible wall washing in 25-degree angle (3000K or RGB) totals 38 meters, which lights up the small building at night and highlights 3D sense of the whole building.

productDetails

Contact

Contact Us

Tel:+ 86 (755) 2765 8410
Fax:+ 86 (755) 2765 8502

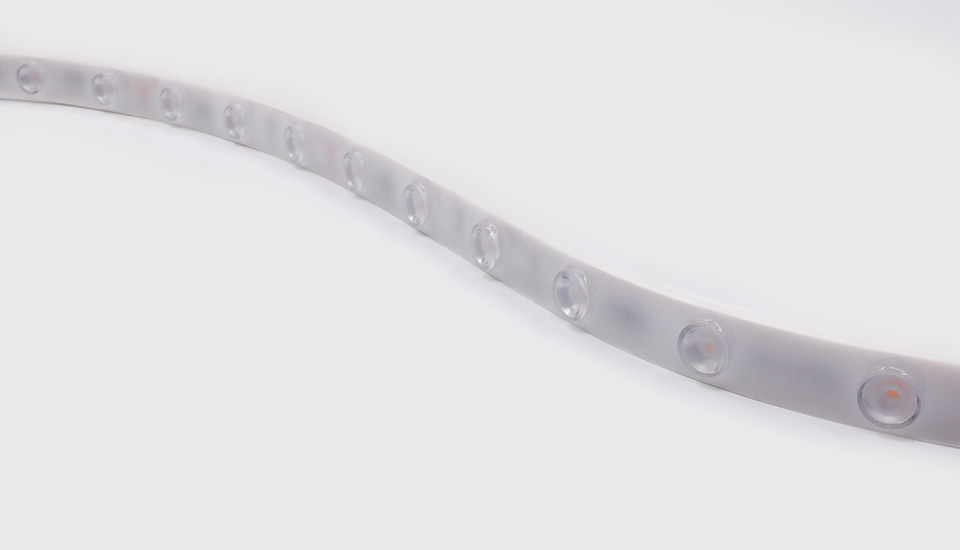

FP18W-P7-G1 30LD8x 24V24S W15L10 X°

Description

  • can supply power up to 5 meters at the single end;
  • High transmittance 95%,Resistance to trample IK08,low temperature resistant-45°
  • Excellent weather resistance, salt and alkali resistance, anti UV4.5, high flame retardant V2.
  • Various angles and colors are available.
description

Parameters

  • Size:10020±10mm
  • Cutting unit:125±1mm
  • Power:20W
  • Input voltage:DC24V
  • Beam angle:15°,30°,45°,60°
  • CRI:>80
  • Led type:24
  • IP rate:IP67
LUMENS PER METER
Product No. FH18W-P7-G1 30LD8x 24V24S W15L10 15° FH18W-P7-G1 30LD8x 24V24S W15L10 30°
2700 1680lm 1660lm
3000 1780lm 1760lm
4000 1820lm 1800lm
6000 1860lm 1840lm
LUMENS PER METER
Product No. FH18W-P7-G1 30LD8x 24V24S W15L10 45° FH18W-P7-G1 30LD8x 24V24S W15L10 60°
2700 1640lm 1620lm
3000 1740lm 1720lm
4000 1780lm 1760lm
6000 1820lm 1800lm
Product No. Order No.
FH18W-P7-G1 30LD827 24V24S W15L10 X° /
Note:'* ' = MTO(make-to-order)

Download

Installation Instruction

  •
  •
×
