Connector
Triangular application
Cross application
Right angle application
Basic parameters
| Rated voltage： | 12~24v |
| Rated current： | <4A |
| working environment： | moisture-proof ventilation -20 ~ 60 degrees environment |
| Temperature resistance： | -40-160℃ |
LED Quick connector-8mm
LD-SE-N8BB-2
LD-SE-N8XB-2
Base parameters
| Shell: | Polycarbonate |
| Contact chip: | Environmentally hardware material,high-precision copper |
| Rated voltage： | 0-36V |
| Rated current： | 5A |
Wire joint
LD-XC-JXD-D2
LD-XC-JXD-H2
LD-XC-JXD-T2
Base parameters
| Shell： | Polycarbonate |
| Contact conductor： | high-precision pure copper |
| Rated voltage： | 0-36V |
| Rated current： | 9A |
| Flame retardant rating: | accord with UL-94-V0 |

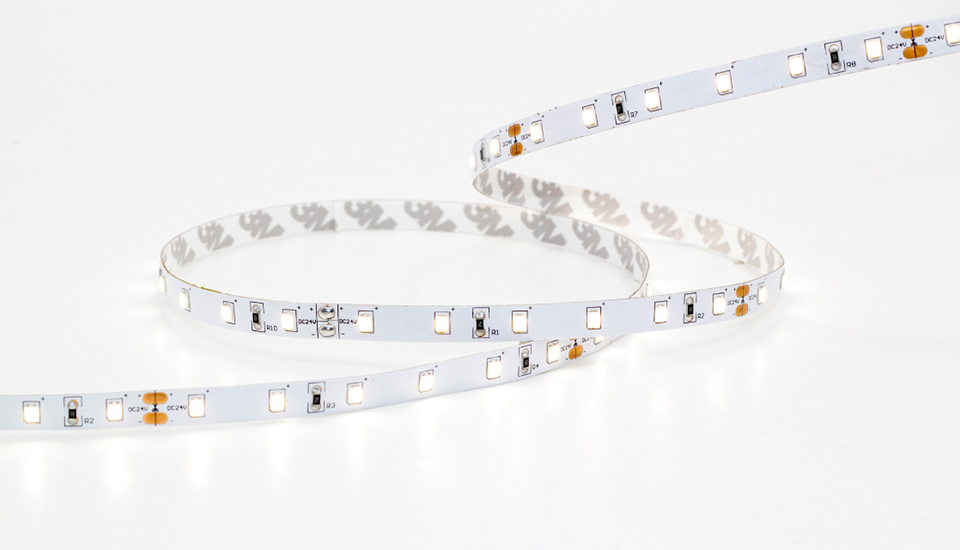

FH05W-P0-G1 28LSFx 24V60S W08L05
Description
- Highly fitted to the visible spectrum, making the illuminated object closer to the color under natural light
- Higher Color fidelity, Rf>95
- Higher color saturation, Rg ≥ 100
Parameters
- Dimension:5004±10mm
- Cutting unit:100±1mm
- Power:4.8W/m
- Voltage:DC24V
- Led Qty:60LEDs/M
- PCB:8mm
- CRI: >95
- IP:IP20
| LUMENS PER METER | |||||
| Product No. | FH05W-P0-G1 28LSFx 24V60S W08L05 | ||||
| 2400K | 360lm | ||||
| 2700K | 370lm | ||||
| 3000K | 384lm | ||||
| 4000K | 394lm | ||||
| 5000K | 413lm | ||||
| 6000K | 384lm | ||||
| Product No. | Order Code |
| FH05W-P0-G1 28LSF24 24V60S W08L05 | 930-0-10-0-000114 |
| FH05W-P0-G1 28LSF27 24V60S W08L05 | 930-0-10-0-000115 |
| FH05W-P0-G1 28LSF30 24V60S W08L05 | 930-0-10-0-000116 |
| FH05W-P0-G1 28LSF40 24V60S W08L05 | 930-0-10-0-000117 |
| FH05W-P0-G1 28LSF50 24V60S W08L05 | 930-0-10-0-000118 |
| FH05W-P0-G1 28LSF60 24V60S W08L05 | 930-0-10-0-000119 |
| Note: ' * ' =MTO(make-to-order) | |
