Connector
Triangular application
Cross application
Right angle application
Basic parameters
| Rated voltage： | 12~24v |
| Rated current： | <4A |
| working environment： | moisture-proof ventilation -20 ~ 60 degrees environment |
| Temperature resistance： | -40-160℃ |
LED Quick connector-8mm
LD-SE-N8BB-2
LD-SE-N8XB-2
Base parameters
| Shell: | Polycarbonate |
| Contact chip: | Environmentally hardware material,high-precision copper |
| Rated voltage： | 0-36V |
| Rated current： | 5A |
Wire joint
LD-XC-JXD-D2
LD-XC-JXD-H2
LD-XC-JXD-T2
Base parameters
| Shell： | Polycarbonate |
| Contact conductor： | high-precision pure copper |
| Rated voltage： | 0-36V |
| Rated current： | 9A |
| Flame retardant rating: | accord with UL-94-V0 |

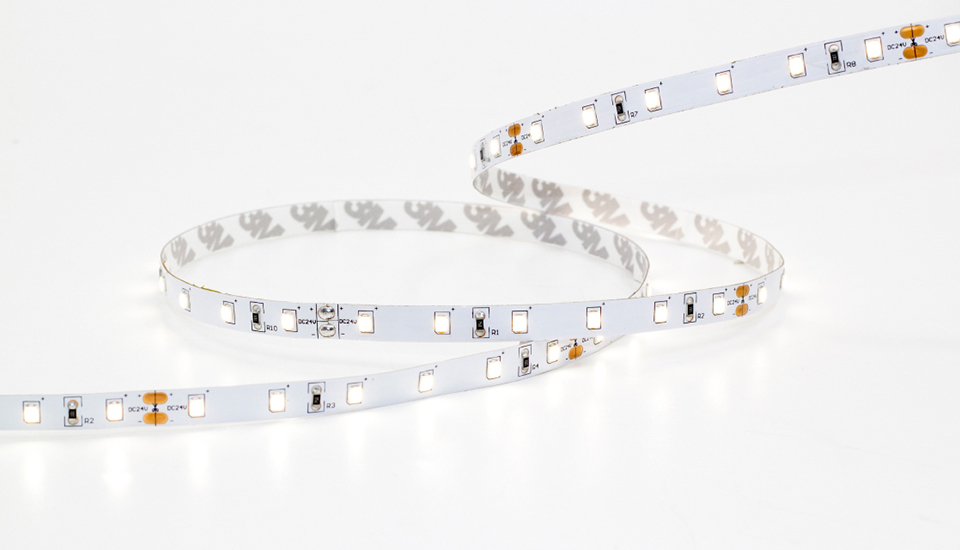

FH05W-P0-G1 28LZ9x 24V60S W08L05
Description
- High CRI; CRI>90
- High Efficiency, Up to 100lm/w
- High color consistency, within 5 steps SDCM(3 steps Optional)
Parameters
- Dimension:5004±10mm
- Cutting unit:166.7±1mm
- Power:4.8W/m
- Voltage:DC24V
- Led Qty:60LEDs/M
- PCB:8mm
- CRI: >90
- IP:IP20
| LUMENS PER METER | |
| Product No. | FH05W-P0-G1 28LZ9x 24V60S W08L05 |
| 2200K | 330lm |
| 2400K | 350lm |
| 2700K | 380lm |
| 3000K | 400lm |
| 4000K | 410lm |
| 5000K | 440lm |
| 6000K | 430lm |
| Product No. | Order Code |
| FH05W-P0-G1 28LZ922 24V60S W08L05* | 930-0-10-0-000008 |
| FH05W-P0-G1 28LZ924 24V60S W08L05 | 930-0-10-0-000009 |
| FH05W-P0-G1 28LZ927 24V60S W08L05 | 930-0-10-0-000010 |
| FH05W-P0-G1 28LZ930 24V60S W08L05 | 930-0-10-0-000011 |
| FH05W-P0-G1 28LZ940 24V60S W08L05 | 930-0-10-0-000012 |
| FH05W-P0-G1 28LZ950 24V60S W08L05 | 930-0-10-0-000013 |
| FH05W-P0-G1 28LZ960 24V60S W08L05 | 930-0-10-0-000014 |
| Note: ' * ' =MTO(make-to-order) | |
