Connector

Triangular application
Cross application
Right angle application
Basic parameters
Rated voltage： 12~24v
Rated current： <4A
working environment： moisture-proof ventilation -20 ~ 60 degrees environment
Temperature resistance： -40-160℃
LED Quick connector-10mm

LD-SE-N10BB-2
LD-SE-N10XB-2
Base parameters
Shell: Polycarbonate
Contact chip: Environmentally hardware material,high-precision copper
Rated voltage： 0-36V
Rated current： 5A
Wire joint

LD-XC-JXD-D2
LD-XC-JXD-H2
LD-XC-JXD-T2
Base parameters
Shell： Polycarbonate
Contact conductor： high-precision pure copper
Rated voltage： 0-36V
Rated current： 9A
Flame retardant rating: accord with UL-94-V0
productDetails

Projects

Volvo Auto 4s Shop


Beijing Volvo 4S shop using a large number of hidden auxiliary lighting, outdoor use the strip lights as decorative lighting, show the outline the three-dimensional of outline. indoor use the Lezun series linear lig hting to create a high-quality light environment and Upgrade the brand.

productDetails

Contact

Contact Us

Tel:+ 86 (755) 2765 8410
Fax:+ 86 (755) 2765 8502

FP10W-P0-G1 28HZ9x 24VC60S W10L05

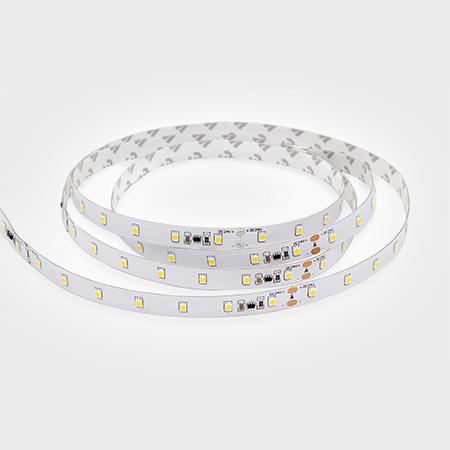

Description

  • Under constant current condition, brightness output is more stable, life is longer.
  • High brightness consistency between different units and batches, more suitable for large projects.
description

Parameters

  • Size:5004±10mm
  • Cutting unit:100±1mm
  • Power:10W/m
  • Voltage:DC24V
  • LED type:60LEDs/M
  • PCB:10mm
  • CRI:>90
  • IP:IP20
LUMENS PER METER
Product No. FP10W-P0-G1 28HZ9x 24VC60S W10L05
2200K 800lm
2400K 900lm
2700K 930lm
3000K 990lm
4000K 1060lm
5000K 1120lm
6000K 1080lm
Product No. Order Code
FP10W-P0-G1 28HZ922 24VC60S W10L05* 932-0-10-0-000001
FP10W-P0-G1 28HZ924 24VC60S W10L05 932-0-10-0-000002
FP10W-P0-G1 28HZ927 24VC60S W10L05 932-0-10-0-000003
FP10W-P0-G1 28HZ930 24VC60S W10L05 932-0-10-0-000004
FP10W-P0-G1 28HZ940 24VC60S W10L05 932-0-10-0-000005
FP10W-P0-G1 28HZ950 24VC60S W10L05 932-0-10-0-000006
FP10W-P0-G1 28HZ960 24VC60S W10L05 932-0-10-0-000007
Note:'*'=MTO(make-to-order)
×
