LED Quick connector-10mm

LD-SE-N10BB-2

LD-SE-N10XB-2
Base parameters
Shell: Polycarbonate
Contact chip: Environmentally hardware material,high-precision copper
Rated voltage: 0-36V
Rated current: 5A
Wire joint

LD-XC-JXD-D2

LD-XC-JXD-H2

LD-XC-JXD-T2
Base parameters
Shell: Polycarbonate
Contact conductor: high-precision pure copper
Rated voltage: 0-36V
Rated current: 9A
Flame retardant rating: accord with UL-94-V0
Connector

Triangular application

Cross application

Right angle application
Basic parameters
Rated voltage: 12~24v
Rated current: <4A
working environment: moisture-proof ventilation -20 ~ 60 degrees environment
Temperature resistance: -40-160℃
productDetails

Projects

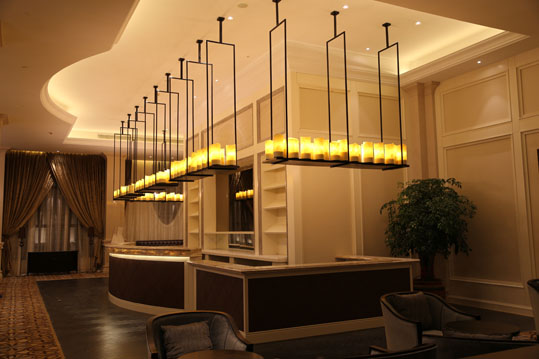

Jinjiang International Resort Hotel


The resort is a relaxing place to live in, and there is strict requirement on lights. LEDMY adopt the customized CCT strip to make different product selection and lighting design in the different environment ,like guest rooms, suites, lovers' rooms. It is helpful for creating right atmosphere, but also combining with lighting function.

productDetails

Contact

Contact Us

Tel:+ 86 (755) 2765 8410
Fax:+ 86 (755) 2765 8502

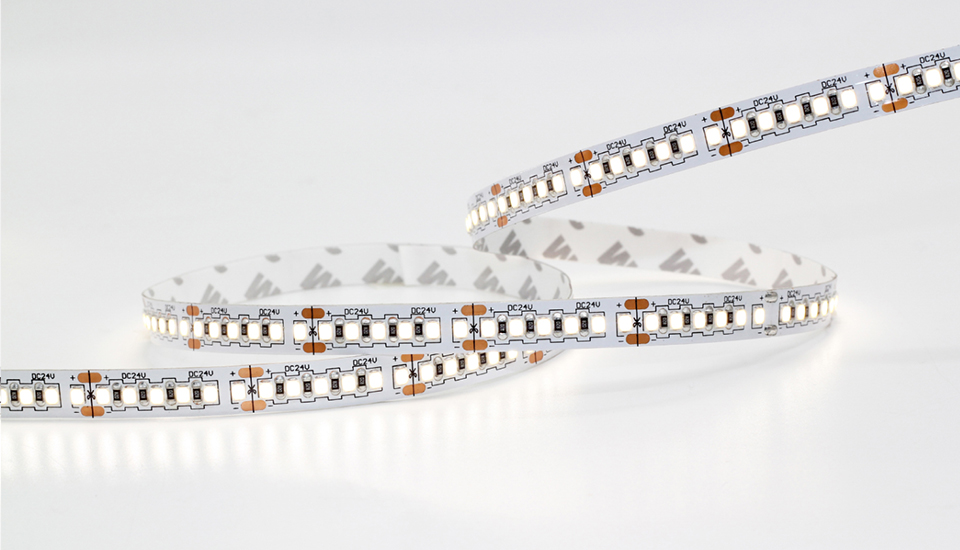

FH14W-P0-G1 28LZ9x 24V180S W10L05

Description

  • High CRI; CRI>90
  • High Efficiency, Up to 100lm/w
  • High color consistency, within 5 steps SDCM(3 steps Optional)
description

Parameters

  • Dimension:5004±10mm
  • Cutting unit:33.3±1mm
  • Power:14.4W/m
  • Voltage:DC24V
  • Led Qty:180LEDs/M
  • PCB:10mm
  • CRI: >90
  • IP:IP20
LUMENS PER METER
Product No. FH14W-P0-G1 28LZ9x 24V180S W10L05
2200K 1020lm
2400K 1120lm
2700K 1180lm
3000K 1260lm
4000K 1320lm
5000K 1420lm
6000K 1380lm
Product No. Order Code
FH14W-P0-G1 28LZ922 24V180S W10L05* 930-0-10-0-000162
FH14W-P0-G1 28LZ924 24V180S W10L05 930-0-10-0-000163
FH14W-P0-G1 28LZ927 24V180S W10L05 930-0-10-0-000164
FH14W-P0-G1 28LZ930 24V180S W10L05 930-0-10-0-000165
FH14W-P0-G1 28LZ940 24V180S W10L05 930-0-10-0-000166
FH14W-P0-G1 28LZ950 24V180S W10L05 930-0-10-0-000167
FH14W-P0-G1 28LZ960 24V180S W10L05 930-0-10-0-000168
Note: ' ' =MTO(make-to-order)

Download

Installation Instruction

  •
  •
×
